In this article, I will introduce the reader to DirectX 11. We will create a simple demo application that can be used to create more complex DirectX examples and demos. After reading this article, you should be able to create a DirectX application and render geometry using a simple vertex shader and pixel shader.



Introduction

DirectX is a collection of application programming interfaces (API). The components of the DirectX API provides low-level access to the hardware running on a Windows based Operating System [1].

Prior to the release of Windows 95, application programmers had direct access to low-level hardware devices such as video, mouse, and keyboards. In Windows 95, access to these low-level hardware devices was restricted [2]. The developers at Microsoft realized that in order to facilitate access to these low-level devices, APIs needed to be developed to provide an abstract way to access these low-level hardware devices [1].

The first version of DirectX was released in September 1995 shortly after the release of Windows 95 under the name Windows Game SDK [1]. Through the period of 1995-1997, the DirectX library went through several version changes to reach version 5. Subsequent major revisions saw a release on an annual schedule until DirectX 9 which wasn’t introduced until two years after DirectX 8 [1].

Prior to DirectX 8.0, the graphics programmer was restricted to a fixed-function rendering pipeline. This meant that the implementation of the rendering algorithms were fixed in the graphics hardware. DirectX 8 introduced the first versions of a programmable shading language with Shader Model 1 [4]. Shader Model 1 featured a single shader profile for creating a very simple vertex shader and did not provide a shader profile for pixel shading.

DirectX 9.0 was released in December 2002 [1] and introduced Shader Model 2.0. Shader Model 2.0 introduced a new vertex shader profile as well as a pixel shader profile. Pixel shaders provided the ability to create per-pixel lighting.

DirectX 9.0c was released in August 2004 [1] together with the introduction of Shader Model 3.0. Shader Model 3.0 extended the existing vertex shader and pixel shader profiles increasing the number of instructions and allowing for more complex shaders.

In November 2006, DirectX 10 was released [1] which introduced Shader Model 4.0. Shader Model 4.0 extended the functionality of the vertex shader and the pixel shader as well as introduced a new shader profile called the geometry shader. Shader Model 4.0 also introduced the Effect Framework which allowed the graphics programmer to create effect files (.fx) that combined vertex, pixel, and geometry shaders in a single file. Support for the effect files was subsequently dropped in later versions of the Direct3D API.

DirectX 11 was released in October 2009 [1] together with Shader Model 5.0. Shader Model 5.0 extended the vertex, pixel, and geometry shaders of Shader Model 4.0 as well as introduce tessellation and compute shader profiles. Tessellation shaders provide the functionality to progressively refine the detail of a mesh at run-time while the compute shaders provide a general-purpose compute language that is executed on the GPU instead of the CPU.

On March 20, 2014, Microsoft will announce the release of DirectX 12 [5] which will no doubt require me to rewrite this entire article.

The table below shows the various releases of DirectX and the corresponding shader model and shader profiles [1][2][4].

DirectX Release Date Shader Model Shader Profile(s)
DirectX 8.0 November 12, 2000 Shader Model 1.0 vs_1_1
DirectX 9.0 November 19, 2002 Shader Model 2.0 vs_2_0, vs_2_x, ps_2_0, ps_2_x
DirectX 9.0c August 4, 2004 Shader Model 3.0 vs_3_0, ps_3_0
DirectX 10.0 November 30, 2006 Shader Model 4.0 vs_4_0, ps_4_0, gs_4_0
DirectX 10.1 February 4, 2008 Shader Model 4.1 vs_4_1, ps_4_1, gs_4_1
DirectX 11.0 October 22, 2009 Shader Model 5.0 vs_5_0, ps_5_0, gs_5_0, ds_5_0, hs_5_0, cs_5_0

DirectX 11 Components

As previously mentioned, the DirectX SDK is actually a collection of programming API’s. The DirectX API that deals with hardware accelerated 3D graphics is the Direc3D API (and the subject of this article) however there are several more API’s which make up the DirectX SDK.

Direct2D

Direct2D is a hardware accelerated 2D graphics API which provides high-performance and high-quality rendering for 2D geometry, bitmaps, and text [6].

Direct3D

Direct3D is a hardware accelerated 3D graphics API [7]. This API is the subject of this article.

DirectWrite

DirectWrite API provides support for high-quality sub-pixel text rendering that can use Direct2D, GDI or application-specific rendering technology [8].

DirectXMath

The DirectXMath API provides SIMD-friendly C++ types and functions for common linear algebra and graphics math operations common to DirectX applications [9]. We will be using this math library for some simple math operations in the application code.

XAudio2

XAudio2 is a low-level audio API that provides signal processing and mixing foundation for developing high performance audio engines for games [10].

XInput

XInput Game Controller API enables applications to receive input from the Xbox 360 Controller for Windows [11].

DXGI

The purpose of the Microsoft DirectX Graphics Infrastructure (DXGI) is to manage low-level tasks that can be independent of the DirectX graphics runtime. You may want to work with DXGI directly if your application needs to enumerate devices or control how data is presented to an output [12]. In this article, we will be using DXGI to enumerate the display devices in order to determine the optimal refresh rate of the screen.

DirectX 11 Pipeline

The DirectX 11 Graphics pipeline consists of several stages. The following diagram illustrates the different stages of the DirectX 11 rendering pipeline. The arrow indicates the flow of data from each stage as well as the flow of data from memory resources such as buffers, textures, and constant buffers that are available on the GPU.

DirectX 11 Rendering Pipeline

DirectX 11 Rendering Pipeline [13]

The image illustrates the 10 stages of the DirectX 11 rendering pipeline. The rectangular blocks are fixed-function stages and cannot be modified programmatically. The rounded-rectangular blocks indicate programmable stages of the pipeline.

Input-Assembler Stage

The first stage of the DirectX graphics pipeline is the Input-Assembler (IA) stage. In this stage, the geometry is specified and the layout of the data which is expected by the vertex shader is configured [13].

Vertex Shader Stage

The Vertex Shader (VS) stage is usually responsible for transforming the vertex position from object space into clip space but it can also be used for performing skinning of skeletal animated meshes or per-vertex lighting [13]. The input to the vertex shader is a single vertex and the minimum output from the vertex shader is a single vertex position in clip-space (the transformation to clip-space can also be performed by the tessellation stage or the geometry shader if either is active).

Hull Shader Stage

The Hull Shader (HS) stage is an optional shader stage and is responsible for determining how much an input control patch should be tessellated by the tessellation stage [14].

Tessellator Stage

The Tessellator Stage is a fixed-function stage that subdivides a patch primitive into smaller primitives according to the tessellation factors specified by the hull shader stage [14].

Domain Shader Stage

The Domain Shader (DS) stage is an optional shader stage and it computes the final vertex attributes based on the output control points from the hull shader and the interpolation coordinates from the tesselator stage [14]. The input to the domain shader is a single output point from the tessellator stage and the output is the computed attributes of the tessellated primitive.

Geometry Shader Stage

The Geometry Shader (GS) stage is an optional shader stage that takes a single geometric primitive (a single vertex for a point primitive, three vertices for a triangle primitive, and two vertices for a line primitive) as input and can either discard the primitive, transform the primitive into another primitive type (for example a point to a quad) or generate additional primitives [13].

Stream Output Stage

The Stream Output (SO) stage is an optional fixed-function stage that can be used to feed primitive data back into GPU memory. This data can be recirculated back to the rendering pipeline to be processed by another set of shaders [13]. This is useful for spawning or terminating particles in a particle effect. The geometry shader can discard particles that should be terminated or generate new particles if particles should be spawned.

Rasterizer Stage

The Rasterizer Stage (RS) stage is a fixed-function stage which will clip primitives into the view frustum and perform primitive culling if either front-face or back-face culling is enabled [13]. The rasterizer stage will also interpolate the per-vertex attributes across the face of each primitive and pass the interpolated values to the pixel shader.

Pixel Shader Stage

The Pixel Shader (PS) stage takes the interpolated per-vertex values from the rasterizer stage and produces one (or more) per-pixel color values [13]. The pixel shader can also optionally output a depth value of the current pixel by mapping a single component 32-bit floating-point value to the SV_Depth semantic but this is not a requirement of the pixel shader program. The pixel shader is invoked once for each pixel that is covered by a primitive [15].

Output-Merger Stage

The Output-Merger (OM) stage combines the various types of output data (pixel shader output values, depth values, and stencil information) together with the contents of the currently bound render targets to produce the final pipeline result [13].

DirectX Demo

Now that we have a little bit of background information regarding the different stages of DirectX 11 let’s try to put it together to create a simple DirectX application that is capable of rendering 3D geometry using a minimal vertex shader and pixel shader.

In this tutorial I will be using Visual Studio 2012 to create a template project that can be used to create subsequent DirectX 11 demos in the future. Starting with Visual Studio 2012 and the Windows 8 SDK the DirecX SDK is now part of the Windows SDK so you do not need to download and install the DirectX SDK seperatly. See Where is the DirectX SDK? for more information.

Visual Studio 2012 also has the ability to compile your HLSL shader code as part of the regular compilation step and you can then load the precompiled shader code directly instead of compiling the shader code at runtime. This enables your application to load faster especially if you have many shaders. In this article I will show how you can setup your project to make use of shader compilation but I will also show you how you can load and compile your shader at runtime.

In this demo, I will not be using any 3rd party dependencies. All included headers and libraries are part of the Windows 8 SDK that comes with Visual Studio 2012 however you should make sure that you have applied the latest updates to Visual Studio 2012 so that you are working with the newest version of the Windows 8 SDK.

DirectX Project

The first step to creating our DirectX demo is to setup an empty Win32 project in Visual Studio. First, let’s startup Visual Studio.

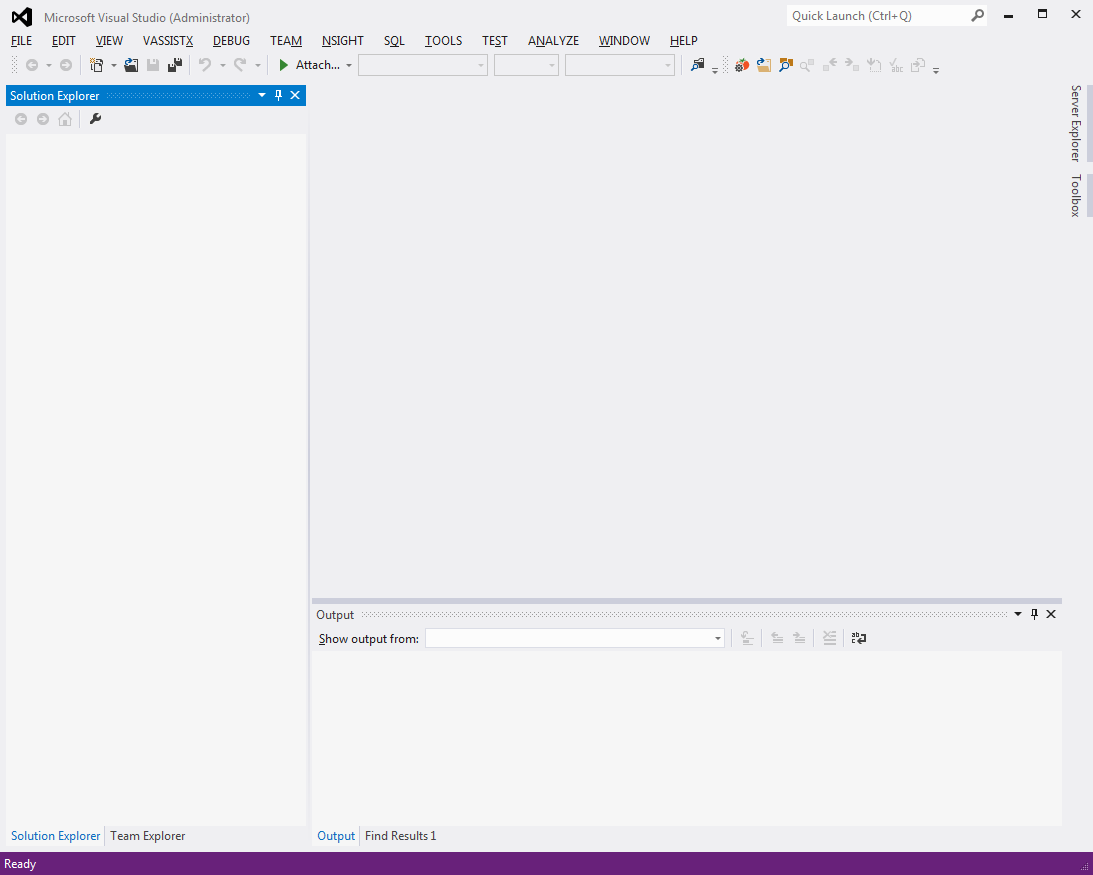

Visual Studio 2012

Visual Studio 2012

Select File > New Project from the main menu to bring up the New Project dialog box.

Visual Studio 2012 (New Project)

Visual Studio 2012 (New Project)

In the New Project dialog box, select the Visual C++ > Empty Project template. Choose a Name, Location and optionally a Solution name (or accept the default) for your new project and press the OK button to create the new project.

Visual Studio 2012 (DirectXTemplate)

Visual Studio 2012 (DirectXTemplate)

Before we continue configuring the project, let’s create a single CPP source file.

Select Project > Add New Item… from the main menu.

Visual Studio 2012 (Add New Item)

Visual Studio 2012 (Add New Item)

Select the Visual C++ > C++ File (.cpp) template and specify the name main.cpp and a location for the new source file. I prefer to put my C++ source files in subdirectory with the name src relative to the project folder. Press the OK button to create the file and add it to the project.

We need at least one CPP source file in the project in order to configure the project correctly. With the main.cpp file added to the project, we can now configure the project settings.

Project Configuration

Open the project properties dialog by selecting Project > Properties from the main menu.

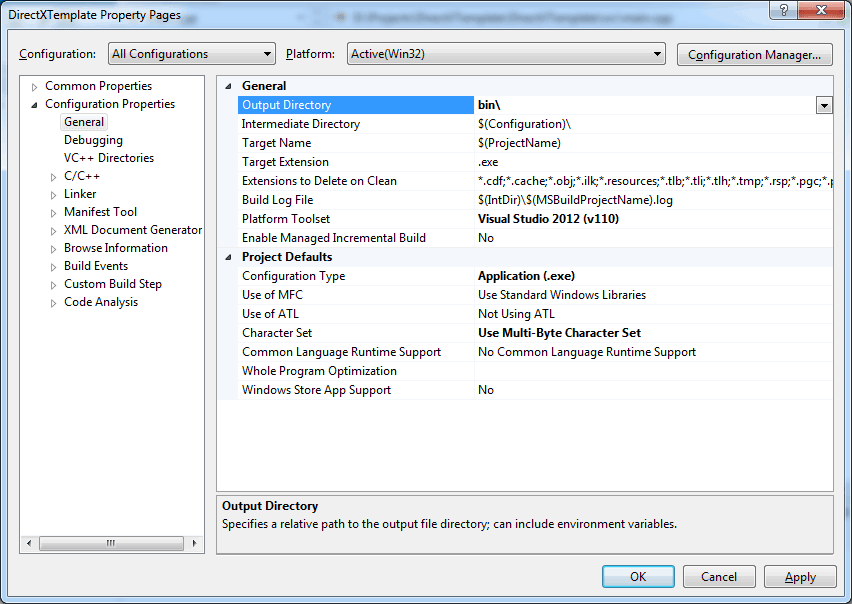

Visual Studio 2012 (Project Properties)

Visual Studio 2012 (Project Properties)

In the Configuration drop-down box, select All Configurations.

Select Configuration Properties > General and change the Output Directory to bin\.

In the Debug configuration only, change the Target Name to $(ProjectName)d. With this configuration, both the debug and the release builds will go to the same folder. To ensure we don’t replace release builds with debug builds and visa-versa, we will append the letter “d” to the end of the debug builds.

Select Configuration Properties > Debugging and change the Working Directory to $(OutDir) for both the Debug and Release configurations. Doing this will ensure that the current working directory will be correctly set to the location of our executable file so that we can express paths in the application relative to the executable (instead of relative to the project folder which usually is a major cause of confusion for beginning programmers).

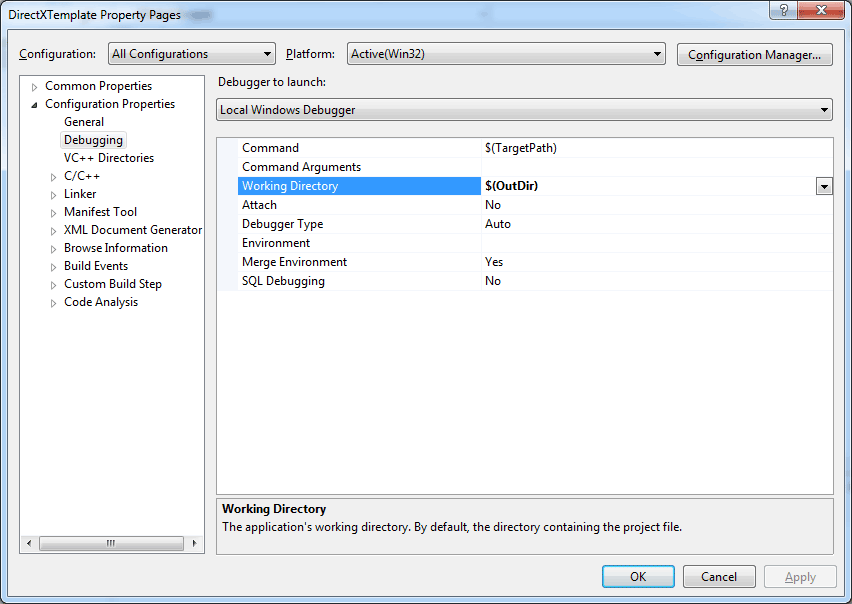

Visual Studio 2012 (Project Properties)

Visual Studio 2012 (Project Properties)

If you want to place your public include folders in a separate directory then we need to tell the C++ compiler where our include files are located. In the C/C++ > General options add the name of the public include folder to the Additional Include Directories options. In my case, I have a separate folder called inc relative to my project folder where I will keep the header files for the project.

Visual Studio 2012 (Project Properties - C/C++)

Visual Studio 2012 (Project Properties – C/C++)

You will notice that we do not need to specify the location of the DirectX headers and libraries when using Visual Studio 2012. These paths are automatically included when we create a new project in Visual Studio 2012.

Precompiled Header

Although not absolutely necessary, I find using precompiled headers useful as it reduces the overall compile time of the project. For this small project, it may not be necessary to use precompiled headers but for large projects it is definitely useful to know how to setup precompiled headers.

For more information on creating and using precompiled header files for your Visual Studio project, please refer to Creating Precompiled Header Files in the MSDN documentation.

Create a new header file in your project with the name DirectXTemplatePCH.h or something similar. The PCH postfix indicates that this file will be used to generate the precompiled header file.

Create a new C++ file in your project with the name DirectXTemplatePCH.cpp. This file will be used to create the precompiled header.

The content of the DirectXTemplatePCH.cpp file should contain only a single include statement and nothing else! If you have other include directives in this file or any C++ code then you are doing it wrong.

#include <DirectXTemplatePCH.h>

Now that we’ve added the initial files that will be used for precompiled headers, let’s configure our project to create and use the precompiled headers.

Select Project > Properties from the main menu.

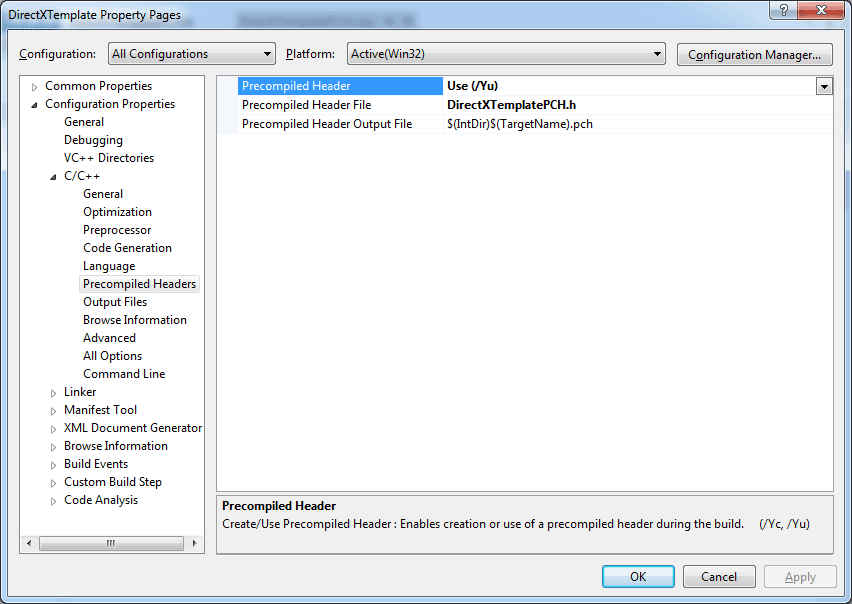

Visual Studio 2012 (Project Properties - Precompiled Headers)

Visual Studio 2012 (Project Properties – Precompiled Headers)

Make sure that All Configurations is selected in the Configuration drop-down box.

Select Configuration Properties > C/C++ > Precompiled Headers and set the Precompiled Header option to Use (/Yu).

Set the Precompiled Header File option to the name of the header file you created in the previous step. In my case the name of the precompiled header file is DirectXTemlatePCH.h.

Apply the settings and without closing the project properties dialog box, select the DirectXTemplatePCH.cpp source file in the Solution Explorer.

Visual Studio 2012 (Project Properties - DirectXTemplatePCH.cpp)

Visual Studio 2012 (Project Properties – DirectXTemplatePCH.cpp)

For the DirectXTemplatePCH.cpp source file only, change the Precompiled Header option to Create (/Yc) and the other options should be the same as we specified at the project level.

With these settings configured, let’s start writing some code!

Global Header

The global header file will contain all of the external (non changing) include files. You should not include project specific header files in the global header file because they are changing often. If the contents of the global header file change often then we can no longer take advantage of precompiled headers.

// System includes
#include <windows.h>

// DirectX includes
#include <d3d11.h>
#include <d3dcompiler.h>
#include <DirectXMath.h>
#include <DirectXColors.h>

// STL includes
#include <iostream>
#include <string>

Since we are creating a Windows application, we first include the ubiquitous Windows header file. This header file contains all of the definitions for creating a Windows based application.

The next set of headers includes the Direct3D API. The d3dcompiler header file is required for loading and compiling HLSL shaders. The DirectXMath header file includes math primitives like vectors, matrices and quaternions as well as the functions to operate on those primitives. The DirectXColors header defines a set of commonly used colors.

// Link library dependencies
#pragma comment(lib, "d3d11.lib")
#pragma comment(lib, "dxgi.lib")
#pragma comment(lib, "d3dcompiler.lib")
#pragma comment(lib, "winmm.lib")

This set of statements will cause the library dependencies to be automatically linked in the linker stage. You can also specify these libraries in the Additional Dependencies property in the Linker options if you want but putting them here simplifies the project configuration settings. Also if you were creating a library project, this file could be included in the global header file of another project to perform automatic linking of the required library dependencies.

// Safely release a COM object.
template<typename T>
inline void SafeRelease( T& ptr )
{
    if ( ptr != NULL )
    {
        ptr->Release();
        ptr = NULL;
    }
}

The SafeRelease function can be used to safely release a COM object and set the COM pointer to NULL. This function allows us to safely release a COM object even if it has already been released before. Since we will be releasing COM objects a lot in this application, this function will also allow us to create neater code.

Preamble

Before we get into the application code, we first need to define some global variables that will be used throughout the demo.

We first need to include the global header file that we created in the previous step.

#include <DirectXTemplatePCH.h>
using namespace DirectX;

On line 2 I include the DirectX namespace into the global namespace. All of the functions and types defined in the DirectXMath API are wrapped in the DirectX namespace. I got really tired of typing out the DirectX namespace every time I wanted to use a vector or a matrix so instead I just import the namespace.

The first set of globals define some properties for the application window.

const LONG g_WindowWidth = 1280;
const LONG g_WindowHeight = 720;
LPCSTR g_WindowClassName = "DirectXWindowClass";
LPCSTR g_WindowName = "DirectX Template";
HWND g_WindowHandle = 0;

const BOOL g_EnableVSync = TRUE;

The size of the window is defined by the g_WindowWidth, and g_WindowHeight variables. The actual window that we will create will be slightly larger than this because these variables actually define the size of the renderable area (or client area) of the window. The actual window size including the window frame will be computed before the actual window is created.

Before we can create a window instance, we need to create a window class. The window class should be unique for our application so we need to define a unique name for the class as well. The unique window class name is defined using the g_WindowClassName global variable.

The g_WindowName variable holds the name of the window that will be created from the window class. The window name will also be displayed in the top of the window frame.

The g_WindowHandle is used to identify the instance of the window that will be created.

A regular LCD or LED computer monitor has a vertical refresh rate of 60 Hz. That means that the image displayed on the screen is presented 60 times per second. When rendering your 3D application, you can choose to let your application display the image at the same rate as the screen’s refresh rate. The advantage of synchronizing your applications display rate with the refresh rate of the screen is that it eliminates any visible artifacts known as screen tearing. If you want to render your scene as fast as possible, you can set the g_EnableVSync variable to FALSE and then your application will not wait for the vertical refresh of the screen to present the scene on the screen.

These are all of the variables that we need to define for the application window. The next set of variables will be DirectX specific.

// Direct3D device and swap chain.
ID3D11Device* g_d3dDevice = nullptr;
ID3D11DeviceContext* g_d3dDeviceContext = nullptr;
IDXGISwapChain* g_d3dSwapChain = nullptr;

// Render target view for the back buffer of the swap chain.
ID3D11RenderTargetView* g_d3dRenderTargetView = nullptr;
// Depth/stencil view for use as a depth buffer.
ID3D11DepthStencilView* g_d3dDepthStencilView = nullptr;
// A texture to associate to the depth stencil view.
ID3D11Texture2D* g_d3dDepthStencilBuffer = nullptr;

// Define the functionality of the depth/stencil stages.
ID3D11DepthStencilState* g_d3dDepthStencilState = nullptr;
// Define the functionality of the rasterizer stage.
ID3D11RasterizerState* g_d3dRasterizerState = nullptr;
D3D11_VIEWPORT g_Viewport = {0};

The g_d3dDevice, g_d3dDeviceContext, and g_d3dSwapChain are the absolute minimum variables required for the most basic DirectX 11 application. A ID3D11Device instance is used for allocating GPU resources such as buffers, textures, shaders, and state objects (to name a few). The ID3D11DeviceContext is used to configure the rendering pipeline and draw geometry. The IDXGISwapChain stores the buffers that are used for rendering data. This interface is also used to determine how the buffers are swapped when the rendered image should be presented to the screen.

The g_d3dRenderTargetView and the g_d3dDepthStencilView variables are used to define the subresource view of the area of a buffer to which we will draw to. A resource view defines an area of a buffer that can be used for rendering. In this case we need two views, the g_d3dRenderTargetView will refer to a subresource of a color buffer while the g_d3dDepthStencilView will refer to a subresource of a depth/stencil buffer.

The IDXGISwapChain instance has only a single color buffer that will be used to store the final color that is to be presented on the screen. In order to store depth information, we must create a separate depth buffer. The g_d3dDepthStencilBuffer will be used to refer to a 2D texture object that will be used to store the depth values so that objects close to the camera do not get overdrawn by objects that are farther away from the camera regardless of their drawing order.

We also need to define a few state variables for configuring the rasterizer and output-merger stages. The g_d3dDepthStencilState will be used to store the depth and stencil states used by the output-merger stage and the g_d3dRasterizerState variable will be used to store rasterizer state used by the rasterizer stage.

The g_Viewport variable defines the size of the viewport rectangle. The viewport rectangle is also used by the rasterizer stage to determine the renderable area on screen. You can use multiple viewports to implement split-screen multiplayer games.

The next set of variables that will be declared are specific to this demo and not generic for DirectX initialization.

// Vertex buffer data
ID3D11InputLayout* g_d3dInputLayout = nullptr;
ID3D11Buffer* g_d3dVertexBuffer = nullptr;
ID3D11Buffer* g_d3dIndexBuffer = nullptr;

// Shader data
ID3D11VertexShader* g_d3dVertexShader = nullptr;
ID3D11PixelShader* g_d3dPixelShader = nullptr;

The g_d3dInputLayout variable will be used to describe the order and type of data that is expected by the vertex shader.

The g_d3dVertexBuffer and g_d3dIndexBuffer variables will be used to store the vertex data and the index list that defines the geometry which will be rendered. The vertex buffer stores the data for each unique vertex in the geometry. In this demo, each vertex will store it’s position in 3D space and the color of the vertex. The index buffer stores a list of indices into the vertex buffer. The order of the indices in the index buffer determines the order that vertices in the vertex buffer are sent to the GPU for rendering.

For this simple demo, we will have two shaders, a vertex shader and a pixel shader. The g_d3dVertexShader variable will hold a reference to the vertex shader object and the g_d3dPixelShader will store a reference to the pixel shader.

Next we’ll declare set of buffers that will be used to update the constant variables that are declared in the vertex shader.

// Shader resources
enum ConstanBuffer
{
    CB_Appliation,
    CB_Frame,
    CB_Object,
    NumConstantBuffers
};

ID3D11Buffer* g_d3dConstantBuffers[NumConstantBuffers];

Here we declare three constant buffers. Constant buffers are used to store shader variables that remain constant during current draw call. An example of a constant shader variable is the camera’s projection matrix. Since the projection matrix will be the same for every vertex of the object, this variable does not need to be passed to the shader using vertex data. Instead, we declare a constant buffer that stores the projection matrix of the camera and this shader variable only needs to be updated when the camera’s projection matrix is modified (which is to say, not often).

  1. Application: The application level constant buffer stores variables that rarely change. The contents of this constant buffer are being updated once during application startup and perhaps are not updated again. An example of an application level shader variable is the camera’s projection matrix. Usually the projection matrix is initialized once when the render window is created and only needs to be updated if the dimensions of the render window are changed (for example, if the window is resized).
  2. Frame: The frame level constant buffer stores variables that change each frame. An example of a frame level shader variable would be the camera’s view matrix which changes whenever the camera moves. This variable only needs to be updated once at the beginning of the render function and generally stays the same for all objects rendered that frame.
  3. Object: The object level constant buffer stores variables that are different for every object being rendered. An example of an object level shader variable is the object’s world matrix. Since each object in the scene will probably have a different world matrix this shader variable needs to be updated for every separate draw call.

This separation of shader variables is arbitrary and you can choose whatever method you would like to separate your constant buffers in your own shaders. Generally you should split up constant buffers in your shader based on the frequency the variables need to be updated.

The next set of variables define the variables that will be updated by the application and used to populate the variables in the constant buffers of the shader.

// Demo parameters
XMMATRIX g_WorldMatrix;
XMMATRIX g_ViewMatrix;
XMMATRIX g_ProjectionMatrix;

We will only draw a single object on the screen in this demo. For this reason, we only need to keep track of a single world matrix which will transform the object’s vertices into world space. The g_WorldMatrix is a 4×4 matrix which will be used to store the world matrix of the cube in our scene.

The g_ViewMatrix only needs to be updated once per frame and is used to store the camera’s view matrix that will transform the object’s vertices from world space into view space.

The g_ProjectionMatrix is updated once at the beginning of the application and is used to store the projection matrix of the camera. The projection matrix will transform the object’s vertices from view space into clip space (which is required by the rasterizer).

Next, we’ll define the geometry for the single object that will be rendered in our scene.

// Vertex data for a colored cube.
struct VertexPosColor
{
    XMFLOAT3 Position;
    XMFLOAT3 Color;
};

VertexPosColor g_Vertices[8] =
{
    { XMFLOAT3( -1.0f, -1.0f, -1.0f ), XMFLOAT3( 0.0f, 0.0f, 0.0f ) }, // 0
    { XMFLOAT3( -1.0f,  1.0f, -1.0f ), XMFLOAT3( 0.0f, 1.0f, 0.0f ) }, // 1
    { XMFLOAT3(  1.0f,  1.0f, -1.0f ), XMFLOAT3( 1.0f, 1.0f, 0.0f ) }, // 2
    { XMFLOAT3(  1.0f, -1.0f, -1.0f ), XMFLOAT3( 1.0f, 0.0f, 0.0f ) }, // 3
    { XMFLOAT3( -1.0f, -1.0f,  1.0f ), XMFLOAT3( 0.0f, 0.0f, 1.0f ) }, // 4
    { XMFLOAT3( -1.0f,  1.0f,  1.0f ), XMFLOAT3( 0.0f, 1.0f, 1.0f ) }, // 5
    { XMFLOAT3(  1.0f,  1.0f,  1.0f ), XMFLOAT3( 1.0f, 1.0f, 1.0f ) }, // 6
    { XMFLOAT3(  1.0f, -1.0f,  1.0f ), XMFLOAT3( 1.0f, 0.0f, 1.0f ) }  // 7
};

WORD g_Indicies[36] =
{
    0, 1, 2, 0, 2, 3,
    4, 6, 5, 4, 7, 6,
    4, 5, 1, 4, 1, 0,
    3, 2, 6, 3, 6, 7,
    1, 5, 6, 1, 6, 2,
    4, 0, 3, 4, 3, 7
};

The VertexPosColor struct defines the properties of a single vertex. In this case the Position member variable will be used to store the position of the vertex in 3D space and the Color member variable will be used to store the red, green, and blue components of the vertex’s color.

The cube geometry that we will render consists of 8 unique vertices (one for each corner of the cube). We cannot simply send the cube geometry directly to the rendering pipeline as-is because the rendering pipeline only knows about points, lines, and triangles (not cubes, spheres, or any other complex shape). In order to create a set of triangles we need to define an index list which determines the order the vertices are sent to the GPU for rendering. In this case, each face of the cube consists of two triangles, an upper and a lower triangle. The first face of the triangle consists of six vertices: { {0, 1, 2}, {0, 2, 3} }. You will notice that in order to create the face, we will duplicate vertex 0, and 2.

When creating the index buffer for our geometry, we must also take the winding order of the vertices into consideration. The winding order of front-facing triangles is determined by the rasterizer state and we can specify that the winding order should be either clock-wise or counter-clockwise. This choice is arbitrary but it will have an impact on the order of the indices in the index buffer. For this demo, we will consider front-facing triangles to be in a clock-wise winding order. The diagram below shows the winding order for the first face of the cube.

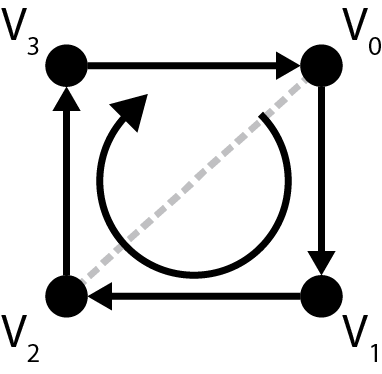

Clockwise Winding Order

Clockwise Winding Order

The lower triangle of the face consists of vertices { 0, 1, 2 } and the upper triangle of the face consists of vertices { 0, 2, 3 }. The gray dashed line represents the triangle subdivision of the face.

The last part of the preamble is the function declarations.

// Forward declarations.
LRESULT CALLBACK WndProc (HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam);

template< class ShaderClass >
ShaderClass* LoadShader( const std::wstring& fileName, const std::string& entryPoint, const std::string& profile );

bool LoadContent();
void UnloadContent();

void Update( float deltaTime );
void Render();
void Cleanup();

The WndProc function is the function that will handle any mouse, keyboard, and window events that are sent to our application window.

The LoadShader template function will be used to load and compile a shader at runtime. It’s templated on the type of shader that is being loaded.

The LoadContent, and UnloadContent functions will load the demo specific resources such as the vertex buffer and index buffer GPU resources for our cube geometry.

The Update function will be used to update any logic required by our demo.

The Render function will render the scene.

The Cleanup function is used to release any DirectX specific resources like the device, device context, and swap chain.

The Main Window

The first thing our application will do is initialize and create the window. We will create a function called InitApplication for this purpose. First we’ll register a window class and then we’ll create a window using that window class.

/**
 * Initialize the application window.
 */
int InitApplication( HINSTANCE hInstance, int cmdShow )
{
    WNDCLASSEX wndClass = {0};
    wndClass.cbSize = sizeof( WNDCLASSEX );
    wndClass.style = CS_HREDRAW | CS_VREDRAW;
    wndClass.lpfnWndProc = &WndProc;
    wndClass.hInstance = hInstance;
    wndClass.hCursor = LoadCursor( nullptr, IDC_ARROW );
    wndClass.hbrBackground = (HBRUSH)(COLOR_WINDOW+1);
    wndClass.lpszMenuName = nullptr;
    wndClass.lpszClassName = g_WindowClassName;

    if ( !RegisterClassEx(&wndClass) )
    {
        return -1;
    }

The window class defines a set of attributes which define a window template. Each window your application creates must have a window class registered which is required to create the window.

The WNDCLASSEX structure has the following definition [16]:

typedef struct tagWNDCLASSEX {
  UINT      cbSize;
  UINT      style;
  WNDPROC   lpfnWndProc;
  int       cbClsExtra;
  int       cbWndExtra;
  HINSTANCE hInstance;
  HICON     hIcon;
  HCURSOR   hCursor;
  HBRUSH    hbrBackground;
  LPCTSTR   lpszMenuName;
  LPCTSTR   lpszClassName;
  HICON     hIconSm;
} WNDCLASSEX, *PWNDCLASSEX;

And the members have the following definition:

  • UINT cbSize: The size, in bytes, of this structure. Set this member to sizeof(WNDCLASSEX).
  • UINT style: The class style. In this case we use the CS_HREDRAW class style which causes the entire window to redraw if a movement or size adjustment changes the width of the client area and the CS_VREDRAW class style which causes the entire window to redraw if a movement or a size adjustment changes the height of the client area.
  • WNDPROC lpfnWndProc: A pointer to the windows procedure that will handle window events for any windows created using this class. In this case we specify the yet undefined WndProc function which was declared earlier.
  • int cbClsExtra: The number of extra bytes to allocate following the window-class structure. This parameter is not used here and should be set to 0.
  • int cpWndExtra: The number of extra bytes to allocate following the window instance. This parameter is not used here and should be set to 0.
  • HINSTANCE hInstance: A handle to the instance of the module that owns this window class. This module instance handle is passed to the WinMain function which will be shown later.
  • HICON hIcon: A handle to the class icon. This icon will be used to represent a window created with this class in the task bar and in the top-left corner of the window’s title bar. You can load an icon from a resource file using the LoadIcon function. If this value is NULL (or nullptr) then the default application icon is used.
  • HCURSOR hCursor: A handle to the class cursor. This must be a handle to a valid cursor resource. For this demo, we will use the default arrow icon by specifying LoadCursor( nullptr, IDC_ARROW ).
  • HBRUSH hbrBackground: A handle to the class background brush. This member can be a handle to the brush to be used for painting the background, or it can be a color value. A color value must be one of the following standard system colors (the value 1 must be added to the chosen color). If a color value is given, you must convert it to one of the following HBRUSH types:
    • COLOR_ACTIVEBORDER
    • COLOR_ACTIVECAPTION
    • COLOR_APPWORKSPACE
    • COLOR_BACKGROUND
    • COLOR_BTNFACE
    • COLOR_BTNSHADOW
    • COLOR_BTNTEXT
    • COLOR_CAPTIONTEXT
    • COLOR_GRAYTEXT
    • COLOR_HIGHLIGHT
    • COLOR_HIGHLIGHTTEXT
    • COLOR_INACTIVEBORDER
    • COLOR_INACTIVECAPTION
    • COLOR_MENU
    • COLOR_MENUTEXT
    • COLOR_SCROLLBAR
    • COLOR_WINDOW
    • COLOR_WINDOWFRAME
    • COLOR_WINDOWTEXT
  • LPCTSTR lpszMenuName: Pointer to a null-terminated character string that specifies the resource name of the class menu, as the name appears in the resource file. If this member is NULL, windows belonging to this class have no default menu.
  • LPCTSTR lpszClassName: A pointer to a null-terminated const string which is used to uniquely identify this window class. This class name will be used to create the window instance.
  • HICON hIconSm: A handle to a small icon that is associated with the window class. If this member is NULL (or nullptr), the system searches the icon resource specified by the hIcon member for an icon of the appropriate size to use as the small icon.

With the window class structure initialized, the window class is registered on line 114 using the RegisterClassEx function.

With the window class registered, we can create a window instance using this class.

    RECT windowRect = { 0, 0, g_WindowWidth, g_WindowHeight };
    AdjustWindowRect( &windowRect, WS_OVERLAPPEDWINDOW, FALSE );

    g_WindowHandle = CreateWindowA( g_WindowClassName, g_WindowName,
        WS_OVERLAPPEDWINDOW, CW_USEDEFAULT, CW_USEDEFAULT,
        windowRect.right - windowRect.left,
        windowRect.bottom - windowRect.top,
        nullptr, nullptr, hInstance, nullptr );

    if ( !g_WindowHandle )
    {
        return -1;
    }

    ShowWindow( g_WindowHandle, cmdShow );
    UpdateWindow( g_WindowHandle );

    return 0;
}

We want to create a window with a client area of g_WindowWidth by g_WindowHeight but if we create a window with those dimensions, the client are will be slightly smaller. In order to get a window with a client area the size we want, we can use the AdjustWindowRect function to adjust the inital window rectangle to account for the window style.

The window instance is created using the CreateWindow function. This function has the following signature [18]:

HWND WINAPI CreateWindow(
  _In_opt_  LPCTSTR lpClassName,
  _In_opt_  LPCTSTR lpWindowName,
  _In_      DWORD dwStyle,
  _In_      int x,
  _In_      int y,
  _In_      int nWidth,
  _In_      int nHeight,
  _In_opt_  HWND hWndParent,
  _In_opt_  HMENU hMenu,
  _In_opt_  HINSTANCE hInstance,
  _In_opt_  LPVOID lpParam
);
The _In_, _Out_, _Outptr_, _Inout_ etc. macros are part of Microsoft’s Source-code Annotation Language (SAL) [17] and primarily used to describe how a function uses its prameters. Any annotation which includes _opt_ indicates that the parameter is optional and can be NULL.

And the properties to this function have the following definition:

  • LPCTSTR lpClassName: The name of the window class to use as a template to create the window instance. The class name must match one of the classes that were previously registered using RegisterClass or RegisterClassEx and associated to the hInstance module.
  • LPCTSTR lpWindowName: The name of the window instance. When creating a window with a title bar, the window name will be displayed in the title bar.
  • DWORD dwStyle: The style of the window being created. This parameter can be a combination of any of the window styles.
  • int x: The initial horizontal position of the window. For an overlapped or pop-up window, the x parameter is the initial x-coordinate of the window’s upper-left corner, in screen coordinates. If this parameter is set to CW_USEDEFAULT, the system selects the default position for the window’s upper-left corner and ignores the y parameter.
  • int y: The initial vertical position of the window. For an overlapped or pop-up window, the y parameter is the initial y-coordinate of the window’s upper-left corner, in screen coordinates. If an overlapped window is created with the WS_VISIBLE style bit set and the x parameter is set to CW_USEDEFAULT, then the y parameter determines how the window is shown. If the y parameter is CW_USEDEFAULT, then the window manager calls ShowWindow with the SW_SHOW flag after the window has been created. If the y parameter is some other value, then the window manager calls ShowWindow with that value as the nCmdShow parameter.
  • int nWidth: The width, in device units, of the window. For overlapped windows, nWidth is either the window’s width, in screen coordinates, or CW_USEDEFAULT. If nWidth is CW_USEDEFAULT, the system selects a default width and height for the window; the default width extends from the initial x-coordinate to the right edge of the screen, and the default height extends from the initial y-coordinate to the top of the icon area. CW_USEDEFAULT is valid only for overlapped windows. In this case, we set the initial window width to the total width of the adjusted window rectangle.
  • int nHeight: The height, in device units, of the window. For overlapped windows, nHeight is the window’s height, in screen coordinates. If nWidth is set to CW_USEDEFAULT, the system ignores nHeight. In this case, we set the initial window height to the total height of the adjusted window rectangle.
  • HWND hWndParent: A handle to the parent window. Since we are creating a top-level window, this parameter can be NULL (or nullptr).
  • HMENU hMenu: A handle to a window or NULL to use the menu that was specified in the window class template. If both the window class and this parameter are NULL, no menu will be created for this window.
  • HINSTANCE hInstance: A handle to the instance of the module to be associated with the window.
  • LPVOID lpParam: A pointer to a value to be passed to the window through the CREATESTRUCT structure (lpCreateParams member) pointed to by the lParam param of the WM_CREATE message. This message is sent to the created window by this function before it returns.

If the window creation succeeded, the window is shown with the ShowWindow function and the UpdateWindow function is called to force the client area of the window to be painted.

Before we continue, let’s take a look at what a minimum windows procedure function must contain.

Windows Procedure Function

The windows procedure function is the function that is assigned to the WNDCLASSEX structure’s lpfnWndProc member variable when we registered the window class. All windows created with with the same class will have the same window procedure function.

The purpose of the windows procedure callback function to to process messages sent to the window.

The windows procedure callback function has the following signature [52]:

LRESULT CALLBACK WindowProc(
  _In_  HWND hwnd,
  _In_  UINT uMsg,
  _In_  WPARAM wParam,
  _In_  LPARAM lParam
);

Where:

  • HWND hwnd: A handle to the window for which the event is intended.
  • UINT uMsg: The event message. For lists of the system-provided messages, see System-Defined Messages.
  • WPARAM wParam: Additional message information. The contents of this parameter depend on the value of the uMsg parameter.
  • LPARAM lParam: Additional message information. The contents of this parameter depend on the value of the uMsg parameter.

The return value is the result of the message processing and depends on the message sent [52].

For this demo, we will implement a minimum message handling function that only responds to the WM_PAINT and WM_DESTROY windows messages. All other messages will be handled by the DefWindowProc function.

LRESULT CALLBACK WndProc (HWND hwnd, UINT message, WPARAM wParam, LPARAM lParam)
{
    PAINTSTRUCT paintStruct;
    HDC hDC;

    switch ( message )
    {
    case WM_PAINT:
        {
            hDC = BeginPaint( hwnd, &paintStruct );
            EndPaint( hwnd, &paintStruct );
        }
        break;
    case WM_DESTROY:
        {
            PostQuitMessage( 0 );
        }
        break;
    default:
        return DefWindowProc( hwnd, message, wParam, lParam );
    }

    return 0;
}

At a minimum, the window procedure must respond to the WM_PAINT window message. We don’t actually do any rendering with this message except erase the window’s background contents using the window class’s background brush (hbrBackground variable of the WNDCLASSEX structure).

In order to close the window, we will also respond to the WM_DESTROY window message which simply calls the PostQuitMessage function which will be handled in Run function which we will define in the next section.

The Run Method

Before we can display the window, we need to create our main game loop. To execute the main game loop, we will create a Run function which will continue to execute until the user decides to quit (by pressing the big red cross on the top-right side of the window).

/**
 * The main application loop.
 */
int Run()
{
    MSG msg = {0};

    static DWORD previousTime = timeGetTime();
    static const float targetFramerate = 30.0f;
    static const float maxTimeStep = 1.0f / targetFramerate;

    while ( msg.message != WM_QUIT )
    {
        if ( PeekMessage( &msg, 0, 0, 0, PM_REMOVE ) )
        {
            TranslateMessage( &msg );
            DispatchMessage( &msg );
        }
        else
        {
            DWORD currentTime = timeGetTime();
            float deltaTime = ( currentTime - previousTime ) / 1000.0f;
            previousTime = currentTime;

            // Cap the delta time to the max time step (useful if your
            // debugging and you don't want the deltaTime value to explode.
            deltaTime = std::min<float>(deltaTime, maxTimeStep);

//            Update( deltaTime );
//            Render();
        }
    }

    return static_cast<int>(msg.wParam);
}

The Run function will continue to execute indefinitely until the WM_QUIT window message is posted to the window’s message queue.

The PeekMessage function will retrieve the next message from the message queue. The PM_REMOVE indicates that the retrieved message should be removed from the window’s message queue. The PeekMessage function will return FALSE if there are no messages to process.

The TranslateMessage function will translate virtual-key messages into character messages [53] and the DispatchMessage function will dispatch the message to the appropriate window’s procedure function [54].

If there is no message to process, then we will call Update and Render which will update the game logic and render our scene. These functions are commented out now because they have not been defined yet.

When the game loop exits, the MSG structure’s wParam member will contain the return code which was specified as the only parameter to the PostQuitMessage in the WndProc function shown earlier.

Before we can execute our application, we must define the main entry point.

The Main Function

The main entry point for our application is the wWinMain function. In this function we will initialize the window and start the main game loop. When the game loop exits, the return code from Run method will be returned to the process that invoked our application.

int WINAPI wWinMain( HINSTANCE hInstance, HINSTANCE prevInstance, LPWSTR cmdLine, int cmdShow )
{
    UNREFERENCED_PARAMETER( prevInstance );
    UNREFERENCED_PARAMETER( cmdLine );

    // Check for DirectX Math library support.
    if ( !XMVerifyCPUSupport() )
    {
        MessageBox( nullptr, TEXT("Failed to verify DirectX Math library support."), TEXT("Error"), MB_OK );
        return -1;
    }

    if( InitApplication(hInstance, cmdShow) != 0 )
    {
        MessageBox( nullptr, TEXT("Failed to create applicaiton window."), TEXT("Error"), MB_OK );
        return -1;
    }

    int returnCode = Run();

    return returnCode;
}

On line 747, the XMVerifyCPUSupport function will return true if the DirectXMath library is supported on the current platform.

The InitApplication function will create the main window and show it on screen.

The Run function will kick-off the main game loop and only returns control back to the main function when the user closes the main window.

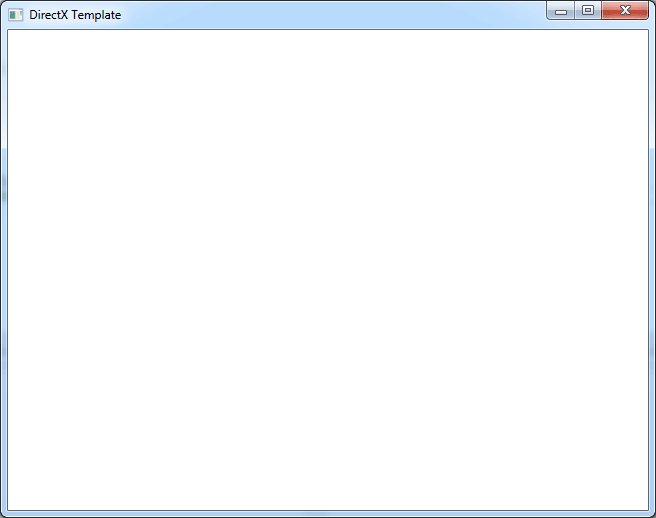

If we run our application now, we should see an empty game window that looks similar to the image below.

DirectX Template (Main Window)

DirectX Template (Main Window)

It’s not very interesting to look at so let’s initialize a Direct3D 11.

Initialize DirectX

In this function we will initialize the Direct3D 11 device, context and swap chain required for rendering graphics.

The process of initializing a Direct3D rendering device consists of several steps:

  1. Create the device and swap chain,
  2. Create a render target view of the swap chain’s back buffer,
  3. Create a texture for the depth-stencil buffer,
  4. Create a depth-stencil view from the depth-stencil buffer,
  5. Create a depth-stencil state object that defines the behaviour of the output merger stage,
  6. Create a rasterizer state object that defines the behaviour of the rasterizer stage.

Create Device and Swap Chain

To create the device and swap chain, we must first setup the swap chain description. The swap chain description defines the size and number of render buffers that will be used by the swap chain. It also associates the window to the swap chain which determines where the final image will be presented. The swap chain description also defines the quality of anti-aliasing (if any) that should be applied and how the back buffer is flipped during presentation.

/**
 * Initialize the DirectX device and swap chain.
 */
int InitDirectX( HINSTANCE hInstance, BOOL vSync )
{
    // A window handle must have been created already.
    assert( g_WindowHandle != 0 );

    RECT clientRect;
    GetClientRect( g_WindowHandle, &clientRect );

    // Compute the exact client dimensions. This will be used
    // to initialize the render targets for our swap chain.
    unsigned int clientWidth = clientRect.right - clientRect.left;
    unsigned int clientHeight = clientRect.bottom - clientRect.top;

    DXGI_SWAP_CHAIN_DESC swapChainDesc;
    ZeroMemory( &swapChainDesc, sizeof(DXGI_SWAP_CHAIN_DESC) );

    swapChainDesc.BufferCount = 1;
    swapChainDesc.BufferDesc.Width = clientWidth;
    swapChainDesc.BufferDesc.Height = clientHeight;
    swapChainDesc.BufferDesc.Format = DXGI_FORMAT_R8G8B8A8_UNORM;
    swapChainDesc.BufferDesc.RefreshRate = QueryRefreshRate( clientWidth, clientHeight, vSync );
    swapChainDesc.BufferUsage = DXGI_USAGE_RENDER_TARGET_OUTPUT;
    swapChainDesc.OutputWindow = g_WindowHandle;
    swapChainDesc.SampleDesc.Count = 1;
    swapChainDesc.SampleDesc.Quality = 0;
    swapChainDesc.SwapEffect = DXGI_SWAP_EFFECT_DISCARD;
    swapChainDesc.Windowed = TRUE;

The DXGI_SWAP_CHAIN_DESC has the following definition [19]:

typedef struct DXGI_SWAP_CHAIN_DESC {
  DXGI_MODE_DESC   BufferDesc;
  DXGI_SAMPLE_DESC SampleDesc;
  DXGI_USAGE       BufferUsage;
  UINT             BufferCount;
  HWND             OutputWindow;
  BOOL             Windowed;
  DXGI_SWAP_EFFECT SwapEffect;
  UINT             Flags;
} DXGI_SWAP_CHAIN_DESC;

The members of the DXGI_SWAP_CHAIN_DESC struct are defined as:

  • DXGI_MODE_DESC BufferDesc: This parameter is a type DXGI_MODE_DESC and has the following members:
    • UINT Width: A value that describes the resolution width. If you specify the width as zero when you call the IDXGIFactory::CreateSwapChain method to create a swap chain, the runtime obtains the width from the output window and assigns this width value to the swap-chain description.
    • UINT Height: A value describing the resolution height. If you specify the height as zero when you call the IDXGIFactory::CreateSwapChain method to create a swap chain, the runtime obtains the height from the output window and assigns this height value to the swap-chain description.
    • DXGI_RATIONAL RefreshRate: A DXGI_RATIONAL structure describing the refresh rate in hertz. We can use 0/1 to specify an unbounded refresh rate. This is useful if we don’t intend to synchronize the presentation of the scene with the refresh rate of the screen. If the window contents are to be displayed full-screen, then this should be the ideal refresh rate at the specified display resolution. If it is a windowed application, then it should be the refresh rate of the desktop.
    • DXGI_FORMAT Format: The pixel format of the display. For a list of possible display formats see DXGI_FORMAT. In this case we specify DXGI_FORMAT_R8G8B8A8_UNORM which creates a 4-component 32-bit unsigned normalized integer format that supports 8 bits per channel including alpha [20].
    • DXGI_MODE_SCANLINE_ORDER ScanlineOrdering: Describes the scan-line drawing mode and can be one of the following values [21]:
      • DXGI_MODE_SCANLINE_ORDER_UNSPECIFIED (Default): The scanline order is unspecified.
      • DXGI_MODE_SCANLINE_ORDER_PROGRESSIVE: The image is created from the first scanline to the last without skipping any.
      • DXGI_MODE_SCANLINE_ORDER_UPPER_FIELD_FIRST: The image is created beginning with the upper field.
      • DXGI_MODE_SCANLINE_ORDER_LOWER_FIELD_FIRST: The image is created beginning with the lower field.
    • DXGI_MODE_SCALING Scaling: This parameter describes the scaling mode and can be one of the following values [22]:
      • DXGI_MODE_SCALING_UNSPECIFIED (Default): Unspecified scaling.
      • DXGI_MODE_SCALING_CENTERED: Specifies no scaling. The image is centered on the display. This flag is typically used for a fixed-dot-pitch display (such as an LED display).
      • DXGI_MODE_SCALING_STRETCHED: Specifies stretched scaling.
  • DXGI_SAMPLE_DESC SampleDesc: A DXGI_SAMPLE_DESC structure that describes multi-sampling parameters. The DXGI_SAMPLE_DESC structure has the following members [23]:
    • UINT Count: The number of multisamples per pixel.
    • UINT Quality: The image quality level. The higher the quality, the lower the performance. The valid range is between zero and one less than the level returned by ID3D11Device::CheckMultisampleQualityLevels. The default sampler mode, with no anti-aliasing, has a count of 1 and a quality level of 0.
  • DXGI_USAGE BufferUsage: A member of the DXGI_USAGE enumerated type that describes the surface usage and CPU access options for the back buffer. This parameter can be one of the following values [24]:
    • DXGI_USAGE_BACK_BUFFER: The surface or resource is used as a back buffer. You don’t need to pass DXGI_USAGE_BACK_BUFFER when you create a swap chain.
    • DXGI_USAGE_READ_ONLY: Use the surface or resource for reading only.
    • DXGI_USAGE_RENDER_TARGET_OUTPUT: Use the surface or resource as an output render target.
    • DXGI_USAGE_SHADER_INPUT: Use the surface or resource as an input to a shader.
    • DXGI_USAGE_SHARED: Share the surface or resource.
    • DXGI_USAGE_UNORDERED_ACCESS: Use the surface or resource for unordered access.
  • UINT BufferCount: A value that describes the number of buffers in the swap chain.
  • HWND OutputWindow: An HWND handle to the output window. This member must not be NULL.
  • BOOL Windowed: A Boolean value that specifies whether the output is in windowed mode.
  • DXGI_SWAP_EFFECT SwapEffect: A member of the DXGI_SWAP_EFFECT enumerated type that describes options for handling the contents of the presentation buffer after presenting a surface. This parameter can have one of the following values [25]:
    • DXGI_SWAP_EFFECT_DISCARD (Default): Use this flag to specify the bit-block transfer (bitblt) model and to specify that DXGI discard the contents of the back buffer after you call IDXGISwapChain::Present. Use this flag to enable the display driver to select the most efficient presentation technique for the swap chain.
    • DXGI_SWAP_EFFECT_SEQUENTIAL: Use this flag to specify the bitblt model and to specify that DXGI persist the contents of the back buffer after you call IDXGISwapChain::Present. Use this option to present the contents of the swap chain in order, from the first buffer (buffer 0) to the last buffer. This flag cannot be used with multisampling.
  • UINT Flags: A member of the DXGI_SWAP_CHAIN_FLAG enumerated type that describes options for swap-chain behavior.

The QueryRefreshRate function is used to query the ideal refresh rate given the specified screen dimensions. If the vSync flag is FALSE then this function simply returns 0/1 which indicates that the screen should be refreshed as quickly as possible without waiting for a vertical sync. You can see the implementation of the QueryRefreshRate function by downloading the demo available at the end of this article.

With the swap chain description initialized, we can create both the swap chain object and the Direct3D 11 device at the same time.

    UINT createDeviceFlags = 0;
#if _DEBUG
    createDeviceFlags = D3D11_CREATE_DEVICE_DEBUG;
#endif

    // These are the feature levels that we will accept.
    D3D_FEATURE_LEVEL featureLevels[] =
    {
        D3D_FEATURE_LEVEL_11_1,
        D3D_FEATURE_LEVEL_11_0,
        D3D_FEATURE_LEVEL_10_1,
        D3D_FEATURE_LEVEL_10_0,
        D3D_FEATURE_LEVEL_9_3,
        D3D_FEATURE_LEVEL_9_2,
        D3D_FEATURE_LEVEL_9_1
    };

    // This will be the feature level that
    // is used to create our device and swap chain.
    D3D_FEATURE_LEVEL featureLevel;

    HRESULT hr = D3D11CreateDeviceAndSwapChain( nullptr, D3D_DRIVER_TYPE_HARDWARE,
        nullptr, createDeviceFlags, featureLevels, _countof(featureLevels),
        D3D11_SDK_VERSION, &swapChainDesc, &g_d3dSwapChain, &g_d3dDevice, &featureLevel,
        &g_d3dDeviceContext );

The createDeviceFlags is a bitfield that defines a set of special parameters that are used to create the device [26]. In this case we specify the D3D11_CREATE_DEVICE_DEBUG flag to create a device that supports the debug layer. The debug layer provides additional checks for correctness and consistency and provides more robust feedback if we do something wrong. Adding this layer does incur some overhead so it is not recommended for production releases.

During device creation, we can specify which feature level we will support. The featureLevels array lists the various feature levels in order from the most desirable to least desirable. The device will be created with the highest feature level that is supported by the end-user’s hardware. To support the widest range of hardware, we will allow the feature level to fall back to 9_1 which provides support for devices as of DirectX 9. For a full list of feature levels and what they each support, see Direct3D feature levels. The featureLevel parameter defined on line 280 will contain the actual feature level that the Direct3D device was created with. We can also query the supported feature level of the device at a later time by using the ID3D11Device::GetFeatureLevel method or use the ID3D11Device::CheckFeatureSupport method to check for a specific feature.

On line 282 we use the D3D11CreateDeviceAndSwapChain function to create the Direct3D device, context, and swap chain.

The D3D11CreateDeviceAndSwapChain function has the following signature [27]:

HRESULT D3D11CreateDeviceAndSwapChain(
  _In_   IDXGIAdapter *pAdapter,
  _In_   D3D_DRIVER_TYPE DriverType,
  _In_   HMODULE Software,
  _In_   UINT Flags,
  _In_   const D3D_FEATURE_LEVEL *pFeatureLevels,
  _In_   UINT FeatureLevels,
  _In_   UINT SDKVersion,
  _In_   const DXGI_SWAP_CHAIN_DESC *pSwapChainDesc,
  _Out_  IDXGISwapChain **ppSwapChain,
  _Out_  ID3D11Device **ppDevice,
  _Out_  D3D_FEATURE_LEVEL *pFeatureLevel,
  _Out_  ID3D11DeviceContext **ppImmediateContext
);

Which has the following properties:

  • IDXGIAdapter *pAdapter: A pointer to the video adapter to use when creating a device. Pass NULL (or nullptr) to use the default adapter, which is the first adapter enumerated by the IDXGIFactory::EnumAdapters method.
  • D3D_DRIVER_TYPE DriverType: The Direct3D driver which implements the device. It must be one of the following values [28]:
    • D3D_DRIVER_TYPE_UNKNOWN: Unknown driver type. I’m not sure why or when you would ever use this value.
    • D3D_DRIVER_TYPE_HARDWARE: A hardware driver, which implements Direct3D features in hardware. This is the primary driver that you should use in your Direct3D applications because it provides the best performance.
    • D3D_DRIVER_TYPE_REFERENCE: A reference driver, which is a software implementation that supports every Direct3D feature. A reference driver is designed for accuracy rather than speed and as a result is slow but accurate. The rasterizer portion of the driver does make use of special CPU instructions whenever it can, but it is not intended for retail applications; use it only for feature testing, demonstration of functionality, debugging, or verifying bugs in other drivers.
    • D3D_DRIVER_TYPE_NULL: A NULL driver, which is a reference driver without render capability. This driver is commonly used for debugging non-rendering API calls, it is not appropriate for retail applications.
    • D3D_DRIVER_TYPE_SOFTWARE: A software driver, which is a driver implemented completely in software. The software implementation is not intended for a high-performance application due to its very slow performance.
    • D3D_DRIVER_TYPE_WARP: A WARP driver, which is a high-performance software rasterizer. The rasterizer supports feature levels 9_1 through level 10_1 with a high performance software implementation. For information about limitations creating a WARP device on certain feature levels, see Limitations Creating WARP and Reference Devices.
  • HMODULE Software: A handle to a DLL that implements a software rasterizer. The value should be non-NULL when D3D_DRIVER_TYPE is D3D_DRIVER_TYPE_SOFTWARE and NULL otherwise.
  • UINT Flags: The runtime layers to enable (see D3D11_CREATE_DEVICE_FLAG); values can be bitwise OR’d together.
  • const D3D_FEATURE_LEVEL *pFeatureLevels: A pointer to an array of D3D_FEATURE_LEVELs, which determine the order of feature levels to attempt to create.
  • UINT FeatureLevels: The number of elements in the pFeatureLevels array.
  • UINT SDKVersion: The SDK version. Since we are using the DirectX 11 SDK, this value must always be D3D11_SDK_VERSION.
  • const DXGI_SWAP_CHAIN_DESC *pSwapChainDesc: A pointer to a swap chain description which was created earlier.
  • IDXGISwapChain **ppSwapChain: Returns the address of a pointer to the IDXGISwapChain object that represents the swap chain used for rendering.
  • ID3D11Device **ppDevice: Returns the address of a pointer to an ID3D11Device object that represents the device created.
  • D3D_FEATURE_LEVEL *pFeatureLevel: Returns a pointer to a D3D_FEATURE_LEVEL, which represents the first element in an array of feature levels supported by the device.
  • ID3D11DeviceContext **ppImmediateContext: Returns the address of a pointer to an ID3D11DeviceContext object that represents the device context.

If we execute the D3D11CreateDeviceAndSwapChain function on a computer with a video card driver that does not implement the Windows Display Driver Model version 1.2 (WDDM 1.2) or higher and we speicfy D3D_FEATURE_LEVEL_11_1 in the feature levels array then this function will fail. The initial version of Windows 7 provided WDDM 1.1 which provides support for the D3D_FEATURE_LEVEL_11_0 feature level and earlier but if we specify D3D_FEATURE_LEVEL_11_1 then the D3D11CreateDeviceAndSwapChain function will fail. In fact, if you do not have the latest version of the Windows SDK, the D3D_FEATURE_LEVEL_11_1 enumeration value may not even be defined and you won’t be able to compile this code. If this is the case for you, make sure you update Visual Studio 2012 to the latest version using the Windows Update utility. In the case this function does fail, we simply try again, but this time we remove the D3D_FEATURE_LEVEL_11_1 value from the featureLevels array.

    if ( hr == E_INVALIDARG )
    {
        hr = D3D11CreateDeviceAndSwapChain( nullptr, D3D_DRIVER_TYPE_HARDWARE,
            nullptr, createDeviceFlags, &featureLevels[1], _countof(featureLevels) - 1,
            D3D11_SDK_VERSION, &swapChainDesc, &g_d3dSwapChain, &g_d3dDevice, &featureLevel,
            &g_d3dDeviceContext );
    }

    if ( FAILED(hr) )
    {
        return -1;
    }

The D3D11CreateDeviceAndSwapChain function is invoked again, this time without the D3D_FEATURE_LEVEL_11_1 enumeration value.

On line 295, we check again if it still failed. If this is the case then it is likely that there is no compatible hardware for any of the feature levels we are requesting. In that case you might want to try one of the other driver types such as D3D_DRIVER_TYPE_WARP but please consider Limitations Creating WARP and Reference Devices before trying this. I’ll leave this up to the reader to implement if they so desire.

If our program gets this far, then we have a valid D3D11Device, D3D11DeviceContext, and DXGISwapChain and we can continue to initialize the swap chain to prepare it for rendering graphics into.

Create a RenderTargetView

The first step is to create a render target view from the swap chain’s back buffer.

    // Next initialize the back buffer of the swap chain and associate it to a
    // render target view.
    ID3D11Texture2D* backBuffer;
    hr = g_d3dSwapChain->GetBuffer( 0, __uuidof(ID3D11Texture2D), (LPVOID*)&backBuffer );
    if ( FAILED( hr ) )
    {
        return -1;
    }

    hr = g_d3dDevice->CreateRenderTargetView( backBuffer, nullptr, &g_d3dRenderTargetView );
    if ( FAILED( hr ) )
    {
        return -1;
    }

    SafeRelease( backBuffer );

On line 305, we use the swap chain’s GetBuffer method to retrieve a pointer to the swap chain’s single back buffer. The swap chain’s back buffer is automatically created based on the content of the DXGI_SWAP_CHAIN_DESC variable that we passed to the D3D11CreateDeviceAndSwapChain function so we do not need to manually create a texture for this purpose. However we do need to associate the backbuffer to a render target view in order to render to the swap chain’s back buffer.

A render target view is used by the Output Merger (OM) stage to draw the final colors emitted by the pixel shader. A render target view allows you to specify an area of a resource which is suitable for rendering to. For example, you can create a larger resource and specify that a smaller region of that larger resource be used as the render target for the output merger stage by creating a render target view of the smaller sub resource.

On line 311 the render target view is created from the entire backBuffer resource by using the ID3D11Device::CreateRenderTargetView method.

The ID3D11Device::CreateRenderTargetView has the following signature [29]:

HRESULT CreateRenderTargetView(
  [in]   ID3D11Resource *pResource,
  [in]   const D3D11_RENDER_TARGET_VIEW_DESC *pDesc,
  [out]  ID3D11RenderTargetView **ppRTView
);

Where:

  • ID3D11Resource *pResource: Pointer to a ID3D11Resource that represents a render target. This resource must have been created with the D3D11_BIND_RENDER_TARGET flag.
  • const D3D11_RENDER_TARGET_VIEW_DESC *pDesc: Pointer to a D3D11_RENDER_TARGET_VIEW_DESC that represents a render-target view description. Set this parameter to NULL to create a view that accesses all of the subresources in mipmap level 0.
  • ID3D11RenderTargetView **ppRTView: Address of a pointer to an ID3D11RenderTargetView. Set this parameter to NULL to validate the other input parameters (the method will return S_FALSE if the other input parameters pass validation).

In this case, because we want to create a render target view from the entire back buffer resource, we can pass NULL (or nullptr) for the 2nd parameter to this method.

After creating the render target view, we can release the reference to the back buffer texture. On line 317, the reference to the backBuffer COM object is released.

Although the swap chain is automatically created with a color buffer, we cannot start rendering 3D graphics until we have created a depth buffer and a depth stencil view to refer to that depth buffer. The depth buffer is necessary when drawing 3D graphics so that objects that are drawn far away from the viewer do not appear to be drawn on top of objects that appear close to the viewer regardless of the order in which they are rendered.

Create a Depth-Stencil Buffer

Let’s first create a 2D texture that will be used as a depth (and stencil) buffer.

    // Create the depth buffer for use with the depth/stencil view.
    D3D11_TEXTURE2D_DESC depthStencilBufferDesc;
    ZeroMemory( &depthStencilBufferDesc, sizeof(D3D11_TEXTURE2D_DESC) );

    depthStencilBufferDesc.ArraySize = 1;
    depthStencilBufferDesc.BindFlags = D3D11_BIND_DEPTH_STENCIL;
    depthStencilBufferDesc.CPUAccessFlags = 0; // No CPU access required.
    depthStencilBufferDesc.Format = DXGI_FORMAT_D24_UNORM_S8_UINT;
    depthStencilBufferDesc.Width = clientWidth;
    depthStencilBufferDesc.Height = clientHeight;
    depthStencilBufferDesc.MipLevels = 1;
    depthStencilBufferDesc.SampleDesc.Count = 1;
    depthStencilBufferDesc.SampleDesc.Quality = 0;
    depthStencilBufferDesc.Usage = D3D11_USAGE_DEFAULT;

    hr = g_d3dDevice->CreateTexture2D( &depthStencilBufferDesc, nullptr, &g_d3dDepthStencilBuffer );
    if ( FAILED(hr) )
    {
        return -1;
    }

To create the texture, we must first define a D3D11_TEXTURE2D_DESC variable that will be used to describe the texture we want to create.

The D3D11_TEXTURE2D_DESC structure has the following members [30]:

typedef struct D3D11_TEXTURE2D_DESC {
  UINT             Width;
  UINT             Height;
  UINT             MipLevels;
  UINT             ArraySize;
  DXGI_FORMAT      Format;
  DXGI_SAMPLE_DESC SampleDesc;
  D3D11_USAGE      Usage;
  UINT             BindFlags;
  UINT             CPUAccessFlags;
  UINT             MiscFlags;
} D3D11_TEXTURE2D_DESC;

Where:

  • UINT Width: Texture width (in texels). This should be the same width as the swap chain’s back buffer.
  • UINT Height: Texture height (in texels). This should be the same height as the swap chain’s back buffer.
  • UINT MipLevels: The maximum number of mipmap levels in the texture. See the remarks in D3D11_TEX1D_SRV. Use 1 for a multisampled texture; or 0 to generate a full set of subtextures.
  • UINT ArraySize: Number of textures in the texture array. For single textures, use 1.
  • DXGI_FORMAT Format: The texture format. For this texture, we use DXGI_FORMAT_D24_UNORM_S8_UINT which is a 32-bit z-buffer format that supports 24 bits for depth and 8 bits for stencil. (See DXGI_FORMAT).
  • DXGI_SAMPLE_DESC SampleDesc: Structure that specifies multisampling parameters for the texture. See DXGI_SAMPLE_DESC. The value of the SampleDesc member should match the SampleDesc member of the DXGI_SWAP_CHAIN_DESC structure which was created earlier.
  • D3D11_USAGE Usage: Value that identifies how the texture is to be read from and written to. It can be one of the following values [31]:
    • D3D11_USAGE_DEFAULT (Default): A resource that requires read and write access by the GPU. This is likely to be the most common usage choice.
    • D3D11_USAGE_IMMUTABLE: A resource that can only be read by the GPU. It cannot be written by the GPU, and cannot be accessed at all by the CPU. This type of resource must be initialized when it is created, since it cannot be changed after creation.
    • D3D11_USAGE_DYNAMIC: A resource that is accessible by both the GPU (read only) and the CPU (write only). A dynamic resource is a good choice for a resource that will be updated by the CPU at least once per frame. To update a dynamic resource, use a Map method.
    • D3D11_USAGE_STAGING: A resource that supports data transfer (copy) from the GPU to the CPU.
  • UINT BindFlags: Identifies how to bind a resource to the pipeline (see D3D11_BIND_FLAG). In this case, we specify D3D11_BIND_DEPTH_STENCIL which indicates that this buffer is to be used as a depth-stencil target for the output-merger stage.
  • UINT CPUAccessFlags: Specifies the types of CPU access allowed for a resource (see D3D11_CPU_ACCESS_FLAG). This value can be 0 in which case no CPU access is required for the resource.
  • UINT MiscFlags: Identifies additional options for resources (see D3D11_RESOURCE_MISC_FLAG).

With the D3D11_TEXTURE2D_DESC variable configured, we can create the texture resource with the ID3D11Device::CreateTexture2D method. This method has the following signature [32]:

HRESULT CreateTexture2D(
  [in]   const D3D11_TEXTURE2D_DESC *pDesc,
  [in]   const D3D11_SUBRESOURCE_DATA *pInitialData,
  [out]  ID3D11Texture2D **ppTexture2D
);

Where:

  • const D3D11_TEXTURE2D_DESC *pDesc: A pointer to a D3D11_TEXTURE2D_DESC structure that describes a 2D texture resource.
  • const D3D11_SUBRESOURCE_DATA *pInitialData: A pointer to an array of D3D11_SUBRESOURCE_DATA structures that describe subresources for the 2D texture resource. If the resource is multisampled, pInitialData must be NULL because multisampled resources cannot be initialized with data when they are created. If the resource is created using the D3D11_USAGE_IMMUTABLE usage flag, then pInitialData must be valid and cannot be NULL.
  • ID3D11Texture2D **ppTexture2D: A pointer to a buffer that receives a pointer to a ID3D11Texture2D interface for the created texture.

Create a Depth-Stencil View

After we have created the depth/stencil buffer resource, we must create a ID3D11DepthStencilView before we can use this depth buffer for rendering. To do this, we will use the ID3D11Device::CreateDepthStencilView method.

    hr = g_d3dDevice->CreateDepthStencilView( g_d3dDepthStencilBuffer, nullptr, &g_d3dDepthStencilView );
    if ( FAILED(hr) )
    {
        return -1;
    }

The ID3D11Device::CreateDepthStencilView method has the following signature [33]:

HRESULT CreateDepthStencilView(
  [in]   ID3D11Resource *pResource,
  [in]   const D3D11_DEPTH_STENCIL_VIEW_DESC *pDesc,
  [out]  ID3D11DepthStencilView **ppDepthStencilView
);

Where:

  • ID3D11Resource *pResource: Pointer to the resource that will serve as the depth-stencil surface. This resource must have been created with the D3D11_BIND_DEPTH_STENCIL flag.
  • const D3D11_DEPTH_STENCIL_VIEW_DESC *pDesc: Pointer to a depth-stencil-view description (see D3D11_DEPTH_STENCIL_VIEW_DESC). Set this parameter to NULL to create a view that accesses mipmap level 0 of the entire resource (using the format the resource was created with).
  • ID3D11DepthStencilView **ppDepthStencilView: Address of a pointer to an ID3D11DepthStencilView.

Similar to the color buffer of the swap chain, we want to create a depth-stencil-view of the entire resource. In this case, we can simply supply NULL (or nullptr) for the 2nd parameter to the CreateDepthStencilView method.

At this point we have initialized the render buffers that are used by our DirectX application. Next we need to create a depth/stencil state object which controls how depth-stencil testing is performed by the output-merger stage and a rasterizer state object which controls how the rasterizer stage behaves.

Create a Depth-Stencil State Object

First let’s create the ID3D11DepthStencilState object. To do this, we first create a D3D11_DEPTH_STENCIL_DESC variable that describes the ID3D11DepthStencilState object.

    // Setup depth/stencil state.
    D3D11_DEPTH_STENCIL_DESC depthStencilStateDesc;
    ZeroMemory( &depthStencilStateDesc, sizeof(D3D11_DEPTH_STENCIL_DESC) );

    depthStencilStateDesc.DepthEnable = TRUE;
    depthStencilStateDesc.DepthWriteMask = D3D11_DEPTH_WRITE_MASK_ALL;
    depthStencilStateDesc.DepthFunc = D3D11_COMPARISON_LESS;
    depthStencilStateDesc.StencilEnable = FALSE;

    hr = g_d3dDevice->CreateDepthStencilState( &depthStencilStateDesc, &g_d3dDepthStencilState );

The D3D11_DEPTH_STENCIL_DESC is a structure with the following members [34]:

typedef struct D3D11_DEPTH_STENCIL_DESC {
  BOOL                       DepthEnable;
  D3D11_DEPTH_WRITE_MASK     DepthWriteMask;
  D3D11_COMPARISON_FUNC      DepthFunc;
  BOOL                       StencilEnable;
  UINT8                      StencilReadMask;
  UINT8                      StencilWriteMask;
  D3D11_DEPTH_STENCILOP_DESC FrontFace;
  D3D11_DEPTH_STENCILOP_DESC BackFace;
} D3D11_DEPTH_STENCIL_DESC;

Where:

  • BOOL DepthEnable: Set to TRUE to enable depth testing, or set to FALSE to disable depth testing.
  • D3D11_DEPTH_WRITE_MASK DepthWriteMask: Identify a portion of the depth-stencil buffer that can be modified by depth data. This variable can be one of the following values [35]:
    • D3D11_DEPTH_WRITE_MASK_ZERO: Turn off writes to the depth-stencil buffer.
    • D3D11_DEPTH_WRITE_MASK_ALL: Turn on writes to the depth-stencil buffer.
  • D3D11_COMPARISON_FUNC DepthFunc: A function that compares depth data against existing depth data. The function options are listed in D3D11_COMPARISON_FUNC.
  • BOOL StencilEnable: Set to TRUE to enable stencil testing, or set to FALSE to disable stencil testing.
  • UINT8 StencilReadMask: Identify a portion of the depth-stencil buffer for reading stencil data.
  • UINT8 StencilWriteMask: Identify a portion of the depth-stencil buffer for writing stencil data.
  • D3D11_DEPTH_STENCILOP_DESC FrontFace: Identify how to use the results of the depth test and the stencil test for pixels whose surface normal is facing towards the camera (see D3D11_DEPTH_STENCILOP_DESC).
  • D3D11_DEPTH_STENCILOP_DESC BackFace: Identify how to use the results of the depth test and the stencil test for pixels whose surface normal is facing away from the camera (see D3D11_DEPTH_STENCILOP_DESC).

In this case, we enable depth testing and set the depth function to D3D11_COMPARISON_LESS which says that if the source data is less than the destination data (that is, the source data is closer to the eye), then the depth comparison passes.

If we wanted to render a transparent effect (such as a particle effect) but the transparent objects are not depth sorted, we would need to enable the depth test function so that the transparent object are still occluded by opaque object but disable depth writes by setting the DepthWriteMask member variable to D3D11_DEPTH_WRITE_MASK_ZERO so that the transparent objects do not occlude any other transparent objects.

Since we are not using the stencil testing for this demo, we simply set the StencilEnable flag to FALSE and forego setting any of the other stencil related variables.

With the D3D11_DEPTH_STENCIL_DESC structure setup, we can create the ID3D11DepthStencilState object using the ID3D11Device::CreateDepthStencilState method.

The ID3D11Device::CreateDepthStencilState method has the following signature [36]:

HRESULT CreateDepthStencilState(
  [in]   const D3D11_DEPTH_STENCIL_DESC *pDepthStencilDesc,
  [out]  ID3D11DepthStencilState **ppDepthStencilState
);

Where:

  • const D3D11_DEPTH_STENCIL_DESC *pDepthStencilDesc: Pointer to a depth-stencil state description (see D3D11_DEPTH_STENCIL_DESC).
  • ID3D11DepthStencilState **ppDepthStencilState: Address of a pointer to the depth-stencil state object created (see ID3D11DepthStencilState).

Create a Rasterizer State Object

The final step in initializing the application for 3D rendering is setting up the rasterizer state object. Similar to the depth-stencil state object, we need to define a D3D11_RASTERIZER_DESC structure that defines how the rasterizer state object behaves.

    // Setup rasterizer state.
    D3D11_RASTERIZER_DESC rasterizerDesc;
    ZeroMemory( &rasterizerDesc, sizeof(D3D11_RASTERIZER_DESC) );

    rasterizerDesc.AntialiasedLineEnable = FALSE;
    rasterizerDesc.CullMode = D3D11_CULL_BACK;
    rasterizerDesc.DepthBias = 0;
    rasterizerDesc.DepthBiasClamp = 0.0f;
    rasterizerDesc.DepthClipEnable = TRUE;
    rasterizerDesc.FillMode = D3D11_FILL_SOLID;
    rasterizerDesc.FrontCounterClockwise = FALSE;
    rasterizerDesc.MultisampleEnable = FALSE;
    rasterizerDesc.ScissorEnable = FALSE;
    rasterizerDesc.SlopeScaledDepthBias = 0.0f;

    // Create the rasterizer state object.
    hr = g_d3dDevice->CreateRasterizerState( &rasterizerDesc, &g_d3dRasterizerState );
    if ( FAILED(hr) )
    {
        return -1;
    }

The D3D11_RASTERIZER_DESC structure has the following members [37]:

typedef struct D3D11_RASTERIZER_DESC {
  D3D11_FILL_MODE FillMode;
  D3D11_CULL_MODE CullMode;
  BOOL            FrontCounterClockwise;
  INT             DepthBias;
  FLOAT           DepthBiasClamp;
  FLOAT           SlopeScaledDepthBias;
  BOOL            DepthClipEnable;
  BOOL            ScissorEnable;
  BOOL            MultisampleEnable;
  BOOL            AntialiasedLineEnable;
} D3D11_RASTERIZER_DESC;

Where:

  • D3D11_FILL_MODE FillMode: Determines the fill mode to use when rendering and can be one of the following values [38]:
    • D3D11_FILL_WIREFRAME: Draw lines connecting the vertices.
    • D3D11_FILL_SOLID: Fill the triangles formed by the vertices.
  • D3D11_CULL_MODE CullMode: Indicates triangles facing the specified direction are not drawn. This variable can have one of the following values [39]:
    • D3D11_CULL_NONE: Always draw all triangles.
    • D3D11_CULL_FRONT: Do not draw triangles that are front-facing.
    • D3D11_CULL_BACK: Do not draw triangles that are back-facing.
  • BOOL FrontCounterClockwise: Determines if a triangle is front- or back-facing. If this parameter is TRUE, a triangle will be considered front-facing if its vertices are counter-clockwise on the render target and considered back-facing if they are clockwise. If this parameter is FALSE, the opposite is true.
  • INT DepthBias: Depth value added to a given pixel. For info about depth bias, see Depth Bias.
  • FLOAT DepthBiasClamp: Maximum depth bias of a pixel. For info about depth bias, see Depth Bias.
  • FLOAT SlopeScaledDepthBias: Scalar on a given pixel’s slope. For info about depth bias, see Depth Bias.
  • BOOL DepthClipEnable: Enable clipping based on distance.
    The hardware always performs x and y clipping of rasterized coordinates. When DepthClipEnable is set to the default–TRUE, the hardware also clips the z value. When you set DepthClipEnable to FALSE, the hardware skips the z clipping.
  • BOOL ScissorEnable: Enable scissor-rectangle culling. All pixels outside an active scissor rectangle are culled. Scissor rectangles can be specified using the ID3D11DeviceContext::RSSetScissorRects method.
  • BOOL MultisampleEnable: Specifies whether to use the quadrilateral or alpha line anti-aliasing algorithm on multisample antialiasing (MSAA) render targets. Set to TRUE to use the quadrilateral line anti-aliasing algorithm and to FALSE to use the alpha line anti-aliasing algorithm.
  • BOOL AntialiasedLineEnable: Specifies whether to enable line antialiasing; only applies if doing line drawing and MultisampleEnable is FALSE.

With the D3D11_RASTERIZER_DESC structure filled in, we can create the ID3D11RasterizerState object using the ID3D11Device::CreateRasterizerState method.

The ID3D11Device::CreateRasterizerState method has the following signature [40]:

HRESULT CreateRasterizerState(
  [in]   const D3D11_RASTERIZER_DESC *pRasterizerDesc,
  [out]  ID3D11RasterizerState **ppRasterizerState
);

Where:

  • const D3D11_RASTERIZER_DESC *pRasterizerDesc: Pointer to a rasterizer state description.
  • ID3D11RasterizerState **ppRasterizerState: Address of a pointer to the rasterizer state object created (see ID3D11RasterizerState).

Initialize the Viewport

Although not strictly considered part of the Direct3D initialization phase, setting up a viewport definition is a necessary component of initializing the rasterizer stage. The viewport defines the area in screen space where our final render will go. For this application, we will be rendering to the entire client area of the application window but we could also define two viewports if we wanted to implement split screen multiplayer or a picture-in-picture effect.

To configure the viewport, we need to know the width and height of the client area. We have already computed the width and height of the client rectangle on lines 243-244 of the InitDirectX function and we used the client area to determine the size of the swap chain’s back buffer and the depth-stencil buffer. We will set the viewport to the same dimensions.

    // Initialize the viewport to occupy the entire client area.
    g_Viewport.Width = static_cast<float>(clientWidth);
    g_Viewport.Height = static_cast<float>(clientHeight);
    g_Viewport.TopLeftX = 0.0f;
    g_Viewport.TopLeftY = 0.0f;
    g_Viewport.MinDepth = 0.0f;
    g_Viewport.MaxDepth = 1.0f;

    return 0;
}

The g_Viewport global variable is of type D3D11_VIEWPORT. This structure has the following members [41]:

typedef struct D3D11_VIEWPORT {
  FLOAT TopLeftX;
  FLOAT TopLeftY;
  FLOAT Width;
  FLOAT Height;
  FLOAT MinDepth;
  FLOAT MaxDepth;
} D3D11_VIEWPORT;

Where:

  • FLOAT TopLeftX: X position of the left hand side of the viewport.
  • FLOAT TopLeftY: Y position of the top of the viewport.
  • FLOAT Width: Width of the viewport.
  • FLOAT Height: Height of the viewport.
  • FLOAT MinDepth: Minimum depth of the viewport. Ranges between 0 and 1.
  • FLOAT MaxDepth: Maximum depth of the viewport. Ranges between 0 and 1.

Now that we have initialized Direct3D, let’s update the wWinMain to include this change.

Update the Main Function

At this point we can update the main function to include the function to initialize Direct3D.

int WINAPI wWinMain( HINSTANCE hInstance, HINSTANCE prevInstance, LPWSTR cmdLine, int cmdShow )
{
    UNREFERENCED_PARAMETER( prevInstance );
    UNREFERENCED_PARAMETER( cmdLine );

    // Check for DirectX Math library support.
    if ( !XMVerifyCPUSupport() )
    {
        MessageBox( nullptr, TEXT("Failed to verify DirectX Math library support."), TEXT("Error"), MB_OK );
        return -1;
    }

    if( InitApplication(hInstance, cmdShow) != 0 )
    {
        MessageBox( nullptr, TEXT("Failed to create applicaiton window."), TEXT("Error"), MB_OK );
        return -1;
    }

    if ( InitDirectX(hInstance, g_EnableVSync) != 0 )
    {
        MessageBox( nullptr, TEXT("Failed to create DirectX device and swap chain."), TEXT("Error"), MB_OK );
        return -1;
    }

    int returnCode = Run();

    return returnCode;
}

If we run the application again, we will still only see a blank window because we still haven’t rendered anything onto the screen.

Up until now, we have only seen the generic initialization code that is required for a minimum Direct3D application. Next we will look at the initialization code that is specific for this particular demo. Before we do that, I would like to diverge to the subject of shaders. First we will create a simple vertex shader and pixel shader that we can use to render our geometry.

Shaders

Up until DirectX 9, the Direct3D API featured a fixed-function pipeline. Using the fixed-function pipeline the graphics programmer was not required to write shaders. As of DirectX 10, the fixed-function pipeline has been deprecated and replaced by a programmable shader pipeline. The minimum required shaders for a DirectX 10 or newer application are a vertex shader and a pixel shader. The vertex shader is responsible for transforming the incoming vertex position into clip-space as required by the rasterizer stage and the pixel shader is responsible for computing the final pixel color from the interpolated vertex attributes.

The shader language for DirectX is called High Level Shading Language (HLSL). HLSL is a C-like (and C++-like as of shader model 5.0) programming language that has support for variables, structs (and interfaces and classes as of shader model 5.0), functions, and various flow control constructs such as if, for, while, do, and switch.

HLSL has another kind of language syntax which is not used in C or C++ programming called semantics. A semantic is a name which is associated to a shader input or output variable. Semantics are required on all variables that are passed between shader stages. In the generic case, the value of the semantic is arbitrary. The only requirement is that there is a matching semantic associated to an output variable in the source shader stage with an input variable in the destination shader stage. For example, the vertex shader might declare an output variable called out_color of type float4 which is associated to the COLOR semantic and the pixel shader declares an input variable called in_color of type float4 which is also associated to the COLOR semantic. This will cause the value of the out_color variable declared in the vertex shader to be connected to the value of the in_color variable in the pixel shader.

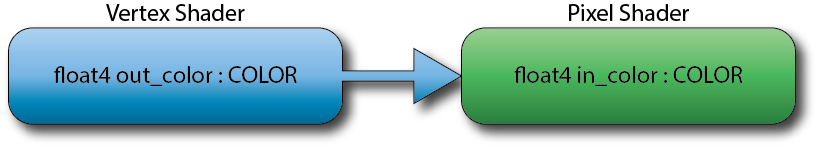

Shader Semantics

Shader Semantics

We will also use semantics to bind the geometry coming from the application to the input assembler and vertex shader stages in the following sections.

Besides these generic semantics, HLSL also defines a set of System-Value semantics [42] which you can associate to input and output variables that have a special meaning to the rendering pipeline. All system-value semantics begin with a SV_ prefix such as SV_Position. As an example, the SV_Position system-value semantic is used to associate a float4 output variable from the vertex shader with the homogeneous clip-space position required by the rasterizer.

For more information on HLSL syntax, please refer to the MSDN documentation on HLSL Language Syntax.

Since the vertex shader stage comes first in the rendering pipeline, let’s take a look at the vertex shader first.

Vertex Shader

The vertex shader consumes vertex attributes from the Input Assembler stage and transforms the vertex position into homogeneous clip-space for the rasterizer stage. The vertex shader can also manipulate other vertex attributes (for example shift and scale texture coordinates) but this is optional in a vertex shader.

The input to the vertex shader is the object-space vertex position and any other vertex attributes that are passed by the application. At a minimum, We need to transform the object-space vertex position into homogeneous clip-space for use by the rasterizer. To perform this transformation, we will multiply the object-space vertex position by the model-view-projection matrix. The model-view-projection matrix is a combination of the geometry’s world matrix, the camera’s view matrix, and the camera’s projection matrix. We will need to pass these matrices to the vertex shader to perform the transformation. We will use constant buffers to store the matrices based on the frequency at which they are updated. Let’s see how we do this.

cbuffer PerApplication : register( b0 )
{
    matrix projectionMatrix;
}

cbuffer PerFrame : register( b1 )
{
    matrix viewMatrix;
}

cbuffer PerObject : register( b2 )
{
    matrix worldMatrix;
}

First we declare three constant buffers using the cbuffer type. Each constant buffer is assigned to constant buffer registers by supplying the b register type. Explicitly assigning the constant buffer registers in this way is optional as the shader compiler will do this anyways if we don’t explicitly assign the registers but doing this provides more control over the placement of the buffers.

You will notice that we split the 3 matrices according to how frequently the matrix is updated. The projection matrix is usually updated when the application is started (in this demo anyways) and the view matrix is updated once per frame and the world matrix is updated for each separate object that will be rendered using this shader. By separating the variables in this way, we can reduce the amount of data that must be sent over the GPU bus. Of course this is an example showing the use of constant buffers. In your own shaders, you may want to compute the combined model-view-projection matrix in the application and only update a single uniform matrix variable in the shader.

Next we need to define a set of variables that will be passed from the application to the vertex shader. For this purpose, we will define a structure that will contain all of the input attributes for the vertex.

struct AppData
{
    float3 position : POSITION;
    float3 color: COLOR;
};

The AppData struct is used to encapsulate all of the vertex attributes that are sent from the application (the code to map vertex attributes from the application to varying shader variables will be shown later). These are the varying input variables to the vertex shader.

Here we also see the first use of semantics. The position variable has the POSITION semantic and the color variable has the COLOR semantic. We will use these semantics to connect the application variables to the shader variables.

Similar to the input variables, we will define a struct which encapsulates the output variables. These variables are sent from the vertex shader to the pixel shader.

struct VertexShaderOutput
{
    float4 color : COLOR;
    float4 position : SV_POSITION;
};

The VertexShaderOutput defines the variables that will be output from the vertex shader. At a minimum, the vertex shader must output a float4 variable bound to the SV_Position system-value semantic as this is required by the rasterizer stage.

The color variable is bound to the COLOR semantic. The pixel shader will also need a matching float4 input variable which is bound to the COLOR semantic to allow this variable to pass from the vertex shader stage to the pixel shader stage. In order for the color variable in the vertex shader to be correctly bound to the matching variable in the pixel shader, not only does the semantics need to match but the register they are bound to must also match. For this reason, I placed the color variable before the position variable in the VertexShaderOutput structure. This way, the first register will be assigned to the color variable in both the vertex shader and the pixel shader (as we will see briefly).

Now let’s see the entry point function of the vertex shader.

VertexShaderOutput SimpleVertexShader( AppData IN )
{
    VertexShaderOutput OUT;

    matrix mvp = mul( projectionMatrix, mul( viewMatrix, worldMatrix ) );
    OUT.position = mul( mvp, float4( IN.position, 1.0f ) );
    OUT.color = float4( IN.color, 1.0f );

    return OUT;
}

The SimpleVertexShader function is the entry point for the vertex shader program. It takes an AppData struct variable as input and returns a VertexShaderOutput struct as output.

On line 32, the combined model-view-projection matrix is computed by multiplying the projection, view, and world matrix together. You will notice that we are post-multiplying the world matrix by the view matrix and the model-view matrix by the projection matrix. If you have done some programming with DirectX in the past, you may have used row-major matrix order in which case you would have swapped the order of multiplications. Since DirectX 10, the default order for matrices in HLSL is column-major so we will stick to this convention in this demo and future DirectX demos.

Using column-major matrices means that we have to post-multiply the vertex position by the model-view-projection matrix to correctly transform the vertex position from object-space to homogeneous clip-space.

On line 34 the vertex color is simply passed as-is to pixel shader.

Next we will create a pixel shader that will be used to determine the final pixel color of our geometry.

Pixel Shader

The pixel shader for this demo is even simpler than the vertex shader. In this case we simply output the color value passed from the vertex shader to the currently bound render target by returning a value that is bound to the SV_Target system value semantic.

struct PixelShaderInput
{
    float4 color : COLOR;
};

float4 SimplePixelShader( PixelShaderInput IN ) : SV_TARGET
{
    return IN.color;
}

The PixelShaderInput struct defines the input variables that we expect to be passed from the vertex shader stage. In this case, we only need the color value from the vertex shader which was bound to the COLOR semantic. We don’t need the position variable which was bound to the SV_Position system-value semantic because that variable was only required by the rasterizer stage.

Compiling Shaders

Now that we have defined the shaders we need to use them in our application. Before we can use them we must compile these shaders into a format that the GPU can understand. We can chose to precompile the shaders in the application’s compilation phase or we can load the HLSL shaders at runtime and compile them “on-the-fly”.

If we compile the shaders with the compilation phase of our application then we can distribute our shaders with the application in a pre-compiled format and we can load the shaders faster because they don’t require compilation during the loading of the application.

If we decide to compile the shaders at runtime then we may get noticeably slower load times if we have a lot of shaders to compile but we have more control over how the shader is loaded based on runtime logic.

Precompiled Shaders

As of Visual Studio 2012, files with the hlsl extension that are added to your project will be compiled by the FXC.exe HLSL shader compiler during the compilation phase of your project. The shader code can be compiled either into a byte array that you can include directly in your source code or you can compile to a compiled shader file which you can load at runtime.

Add the SimpleVertexShader.hlsl file and the SimplePixelShader.hlsl file to your project.

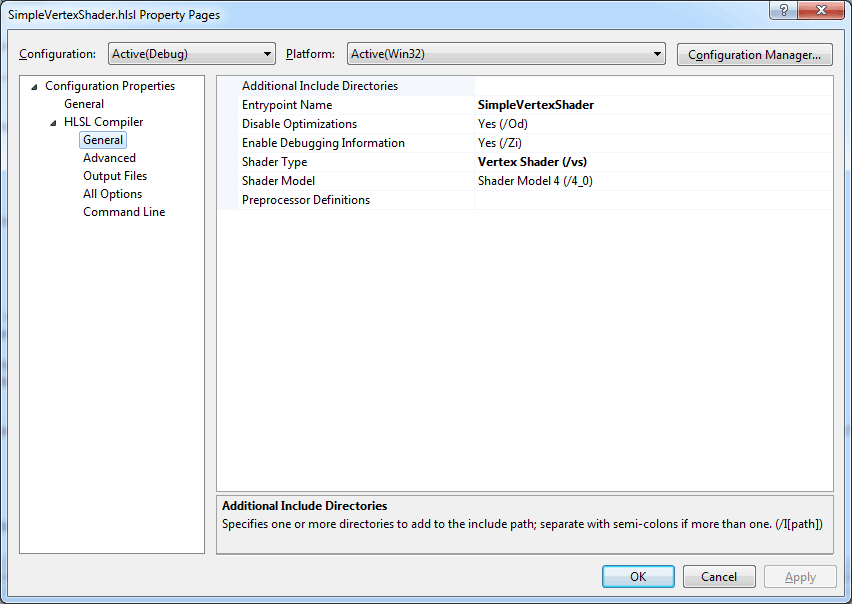

Right-click the SimpleVertexShader.hlsl file in the solution explorer and select Properties from the pop-up menu that appears.

SimpleVertexShader Properties

SimpleVertexShader Properties

For both Debug and Release builds, select the HLSL Compiler > General options and set the Entrypoint Name property to SimpleVertexShader to match the name of the entry point function defined in the shader.

Set the Shader Type to Vertex Shader (/vs) and set the Shader Model to the shader model you want to support.

Select the HLSL Compiler > Output Files node.

SimpleVertexShader Properties (2)

SimpleVertexShader Properties (2)

The Header Variable Name property determines the name of the global variable that is declared in the header file which is used to refer to the compiled byte array of your shader.

The Header File Name determines the location of the header file where the compiled shader byte array will be written to. The location of this property is relative to the folder where your project file is located.

The Object File Name determines the location of the the file that contains the compiled shader object file is written to.

Follow these steps for the pixel shader as well.

You do not need to specify both the Header File Name and the Object File Name because you will usually only use one or the other. In the next section I will show how you can use either of these options to load the precompiled shader object in the application.

Runtime Compiled Shader

The other way to compile your shaders is to compile them at runtime. Using this method requires the d3dcompiler runtime to be distributed with your application and if you are building a DirectX application for the Windows App store then you should not use this method. This method should only be used to test and debug your shaders or if you do not intend to distribute your DirectX application on the Windows App store and you don’t mind the extra load time of compiling your shaders at runtime.

To load the shader at runtime, we will define a template function called LoadShader to load a shader from a file path. Since the loading of the shader object is similar regardless of the type of the shader except for a few lines of code, the LoadShader function will be templated on the type of shader object we are loading.

We will probably also want to take the feature level of the end-users graphics hardware into consideration when loading our shaders. If the end-users computer only supports feature level 10_0 we should not try to compile our shaders using Shader Model 5.0. The GetLatestProfile template function will return the latest shader profile based on the feature level of the end-users computer.

Get the Latest Profile

First let’s declare the GetLatestProfile template function.

// Get the latest profile for the specified shader type.
template< class ShaderClass >
std::string GetLatestProfile();

Next we will specialize this function based on the vertex shader type.

template<>
std::string GetLatestProfile<ID3D11VertexShader>()
{
    assert( g_d3dDevice );

    // Query the current feature level:
    D3D_FEATURE_LEVEL featureLevel = g_d3dDevice->GetFeatureLevel();

    switch( featureLevel )
    {
    case D3D_FEATURE_LEVEL_11_1:
    case D3D_FEATURE_LEVEL_11_0:
        {
            return "vs_5_0";
        }
        break;
    case D3D_FEATURE_LEVEL_10_1:
        {
            return "vs_4_1";
        }
        break;
    case D3D_FEATURE_LEVEL_10_0:
        {
            return "vs_4_0";
        }
        break;
    case D3D_FEATURE_LEVEL_9_3:
        {
            return "vs_4_0_level_9_3";
        }
        break;
    case D3D_FEATURE_LEVEL_9_2:
    case D3D_FEATURE_LEVEL_9_1:
        {
            return "vs_4_0_level_9_1";
        }
        break;
    } // switch( featureLevel )

    return "";
}

This version of the template function returns the latest vertex shader profile that can be used to compile the vertex shader given the specific feature level supported by the end-user’s hardware.

And we will also provide a specialization for the pixel shader type.

template<>
std::string GetLatestProfile<ID3D11PixelShader>()
{
    assert( g_d3dDevice );

    // Query the current feature level:
    D3D_FEATURE_LEVEL featureLevel = g_d3dDevice->GetFeatureLevel();
    switch( featureLevel )
    {
    case D3D_FEATURE_LEVEL_11_1:
    case D3D_FEATURE_LEVEL_11_0:
        {
            return "ps_5_0";
        }
        break;
    case D3D_FEATURE_LEVEL_10_1:
        {
            return "ps_4_1";
        }
        break;
    case D3D_FEATURE_LEVEL_10_0:
        {
            return "ps_4_0";
        }
        break;
    case D3D_FEATURE_LEVEL_9_3:
        {
            return "ps_4_0_level_9_3";
        }
        break;
    case D3D_FEATURE_LEVEL_9_2:
    case D3D_FEATURE_LEVEL_9_1:
        {
            return "ps_4_0_level_9_1";
        }
        break;
    }
    return "";
}

This version of the function returns the latest pixel shader profile that can be used to compile the pixel shader.

Feel free to implement template specializations for the geometry shader, hull shader and domain shader types. Keep in mind that geometry shaders are only supported as of feature level 10_0 and hull and domain shaders are only supported as of feature level 11_0 [43].

Create a Shader Object

Another function that should be specialized based on the shader type is a function that will create a shader object based on the shader type. This is the only part of the LoadShader function that is different depending on what kind of shader is being loaded.

First we will define a template function that will create the shader object.

template< class ShaderClass >
ShaderClass* CreateShader( ID3DBlob* pShaderBlob, ID3D11ClassLinkage* pClassLinkage );

The CreateShader template function takes a binary object and the class linkage object and creates the appropriate shader object.

First let’s specialize this template function on the ID3D11VertexShader type.

template<>
ID3D11VertexShader* CreateShader<ID3D11VertexShader>( ID3DBlob* pShaderBlob, ID3D11ClassLinkage* pClassLinkage )
{
    assert( g_d3dDevice );
    assert( pShaderBlob );

    ID3D11VertexShader* pVertexShader = nullptr;
    g_d3dDevice->CreateVertexShader( pShaderBlob->GetBufferPointer(), pShaderBlob->GetBufferSize(), pClassLinkage, &pVertexShader );

    return pVertexShader;
}

This function uses the ID3D11Device::CreateVertexShader method to create the vertex shader object.

Next, we’ll specialize on the ID3D11PixelShader shader type.

template<>
ID3D11PixelShader* CreateShader<ID3D11PixelShader>( ID3DBlob* pShaderBlob, ID3D11ClassLinkage* pClassLinkage )
{
    assert( g_d3dDevice );
    assert( pShaderBlob );

    ID3D11PixelShader* pPixelShader = nullptr;
    g_d3dDevice->CreatePixelShader( pShaderBlob->GetBufferPointer(), pShaderBlob->GetBufferSize(), pClassLinkage, &pPixelShader );

    return pPixelShader;
}

Clearly this version of the template function is not much different than that of the vertex shader type except in the method that is used to create the shader object but we needed to do this to simplify the functionality of the LoadShader function which I will show next.

Load a Shader

The LoadShader template function takes the file path to a HLSL shader file, the entry point function in that file, and a compatible profile to compile the shader to and returns the initialized shader object.

template< class ShaderClass >
ShaderClass* LoadShader( const std::wstring& fileName, const std::string& entryPoint, const std::string& _profile )
{
    ID3DBlob* pShaderBlob = nullptr;
    ID3DBlob* pErrorBlob = nullptr;
    ShaderClass* pShader = nullptr;

    std::string profile = _profile;
    if ( profile == "latest" )
    {
        profile = GetLatestProfile<ShaderClass>();
    }

The LoadShader function accepts the profile to use to compile the shader but we can also use the special value “latest” profile value which specifies that the latest profile for the current feature level should be used.

The next step is to compile the HLSL shader into a Binary Large Object (BLOB) using the D3DCompileFromFile function.

    UINT flags = D3DCOMPILE_ENABLE_STRICTNESS;
#if _DEBUG
    flags |= D3DCOMPILE_DEBUG;
#endif

    HRESULT hr = D3DCompileFromFile( fileName.c_str(), nullptr,
        D3D_COMPILE_STANDARD_FILE_INCLUDE, entryPoint.c_str(), profile.c_str(),
        flags, 0, &pShaderBlob, &pErrorBlob );

    if ( FAILED( hr ) )
    {
        if ( pErrorBlob )
        {
            std::string errorMessage = (char*)pErrorBlob->GetBufferPointer();
            OutputDebugStringA( errorMessage.c_str() );

            SafeRelease(pShaderBlob);
            SafeRelease(pErrorBlob);
        }

        return false;
    }

The D3DCompileFromFile function has the following signature [44]:

HRESULT WINAPI D3DCompileFromFile(
  in       LPCWSTR pFileName,
  in_opt   const D3D_SHADER_MACRO *pDefines,
  in_opt   ID3DInclude *pInclude,
  in       LPCSTR pEntrypoint,
  in       LPCSTR pTarget,
  in       UINT Flags1,
  in       UINT Flags2,
  out      ID3DBlob **ppCode,
  out_opt  ID3DBlob **ppErrorMsgs
);

Where:

  • LPCWSTR pFileName: A pointer to a constant null-terminated string that contains the name of the file that contains the shader code.
  • const D3D_SHADER_MACRO *pDefines: An optional array of D3D_SHADER_MACRO structures that define shader macros. Each macro definition contains a name and a NULL-terminated definition. If not used, set to NULL.
  • ID3DInclude *pInclude: An optional pointer to an ID3DInclude interface that the compiler uses to handle include files. If you set this parameter to NULL and the shader contains a #include directive, a compile error occurs. You can pass the D3D_COMPILE_STANDARD_FILE_INCLUDE macro, which is a pointer to a default include handler. This default include handler includes files that are relative to the current directory.
  • LPCSTR pEntrypoint: A pointer to a constant null-terminated string that contains the name of the shader entry point function where shader execution begins.
  • LPCSTR pTarget: A pointer to a constant null-terminated string that specifies the shader target or set of shader features to compile against. The shader target can be a shader model (for example, shader model 2, shader model 3, shader model 4, or shader model 5 and later). The target can also be an effect type (for example, fx_4_1). For info about the targets that various profiles support, see Specifying Compiler Targets.
  • UINT Flags1: A combination of shader compile options that are combined by using a bitwise OR operation. The resulting value specifies how the compiler compiles the HLSL code.
  • UINT Flags2: A combination of effect compile options that are combined by using a bitwise OR operation. The resulting value specifies how the compiler compiles the effect. When you compile a shader and not an effect file, D3DCompileFromFile ignores Flags2 and should be set to 0.
  • ID3DBlob **ppCode: A pointer to a variable that receives a pointer to the ID3DBlob interface that you can use to access the compiled code.
  • ID3DBlob **ppErrorMsgs: An optional pointer to a variable that receives a pointer to the ID3DBlob interface that you can use to access compiler error messages, or NULL if there are no errors.

If the shader compilation fails, (which is likely to happen if our shader contains a syntax error) D3DCompileFromFile returns a Direct3D 11 error code and we can use the error blob to determine the error that occured. The OutputDebugString function can be used to send the error message directly to the Visual Studio debug log.

At this point we only have the shader blob but we still need to create a shader object from the binary blob object. We can use the CreateShader template function we defined earlier.

    pShader = CreateShader<ShaderClass>( pShaderBlob, nullptr );

    SafeRelease( pShaderBlob );
    SafeRelease( pErrorBlob );

    return pShader;
}

The compiled shader object is now ready for use by the rendering pipeline.

DirectX Demo Cont…

Now that we have seen two simple HLSL shaders and we have compiled and loaded the shaders into shader objects let’s put them to good use in our application.

Load Demo Content

The LoadContent function will be used to load demo specific content. The content that should be loaded in this function would be shaders that are specific to the demo, geometry that will be rendered in the scene, and textures or any other resources that are specific to this particular demo.

Vertex Buffer

In the LoadContent function, we’ll create two buffers. The first buffer will contain the vertex data that defines the geometry that will be rendered on the screen. The second buffer will contain the index data that defines the order to send the vertex data to the GPU for rendering.

bool LoadContent()
{
    assert( g_d3dDevice );

    // Create an initialize the vertex buffer.
    D3D11_BUFFER_DESC vertexBufferDesc;
    ZeroMemory( &vertexBufferDesc, sizeof(D3D11_BUFFER_DESC) );

    vertexBufferDesc.BindFlags = D3D11_BIND_VERTEX_BUFFER;
    vertexBufferDesc.ByteWidth = sizeof( VertexPosColor ) * _countof(g_Vertices);
    vertexBufferDesc.CPUAccessFlags = 0;
    vertexBufferDesc.Usage = D3D11_USAGE_DEFAULT;

    D3D11_SUBRESOURCE_DATA resourceData;
    ZeroMemory( &resourceData, sizeof(D3D11_SUBRESOURCE_DATA) );

    resourceData.pSysMem = g_Vertices;

    HRESULT hr = g_d3dDevice->CreateBuffer( &vertexBufferDesc, &resourceData, &g_d3dVertexBuffer );
    if ( FAILED(hr) )
    {
        return false;
    }

To create a buffer we need two things; a D3D11_BUFFER_DESC structure that describes the buffer we are creating and a D3D11_SUBRESOURCE_DATA structure that defines the data to initialize the buffer with.

The D3D11_BUFFER_DESC structure has the following definition [45]:

typedef struct D3D11_BUFFER_DESC {
  UINT        ByteWidth;
  D3D11_USAGE Usage;
  UINT        BindFlags;
  UINT        CPUAccessFlags;
  UINT        MiscFlags;
  UINT        StructureByteStride;
} D3D11_BUFFER_DESC;

Where:

  • UINT ByteWidth: The size of the buffer in bytes.
  • D3D11_USAGE Usage: Identify how the buffer is expected to be read from and written to. Frequency of update is a key factor. The most common value is typically D3D11_USAGE_DEFAULT; see D3D11_USAGE for all possible values.
  • UINT BindFlags: Identify how the buffer will be bound to the pipeline (see D3D11_BIND_FLAG). Since this is a vertex buffer we specify the D3D11_BIND_VERTEX_BUFFER which allows this buffer to be bound as a vertex buffer to the input-assembler stage.
  • UINT CPUAccessFlags: CPU access flags (see D3D11_CPU_ACCESS_FLAG) or 0 if no CPU access is necessary.
  • UINT MiscFlags: Miscellaneous flags (see D3D11_RESOURCE_MISC_FLAG) or 0 if unused.
  • UINT StructureByteStride: The size of each element in the buffer structure (in bytes) when the buffer represents a structured buffer. For more info about structured buffers, see Structured Buffer.

The D3D11_SUBRESOURCE_DATA structure is used to specify the data that is used to initialize a buffer when it is created.

The D3D11_SUBRESOURCE_DATA structure has the following definition [46]:

typedef struct D3D11_SUBRESOURCE_DATA {
  const void *pSysMem;
  UINT       SysMemPitch;
  UINT       SysMemSlicePitch;
} D3D11_SUBRESOURCE_DATA;

Where:

  • const void *pSysMem: A pointer to the data to initialize the buffer with.
  • UINT SysMemPitch: The distance (in bytes) from the beginning of one line of a texture to the next line. System-memory pitch is used only for 2D and 3D texture data as it is has no meaning for the other resource types.
  • UINT SysMemSlicePitch: The distance (in bytes) from the beginning of one depth level to the next. System-memory-slice pitch is only used for 3D texture data as it has no meaning for the other resource types.

On line 406, we set the pSysMem member of the resourceData variable to the g_Vertices array which was defined in the main preamble.

The ID3D11Device::CreateBuffer method is used to create the vertex buffer which can be bound to the input-assembler stage to render the cube geometry.

The ID3D11Device::CreateBuffer method has the following signature [47]:

HRESULT CreateBuffer(
  [in]             const D3D11_BUFFER_DESC *pDesc,
  [in, optional]   const D3D11_SUBRESOURCE_DATA *pInitialData,
  [out, optional]  ID3D11Buffer **ppBuffer
);

Where:

  • const D3D11_BUFFER_DESC *pDesc: A pointer to a D3D11_BUFFER_DESC structure that describes the buffer.
  • const D3D11_SUBRESOURCE_DATA *pInitialData: A pointer to a D3D11_SUBRESOURCE_DATA structure that describes the initialization data; use NULL to allocate space only (with the exception that it cannot be NULL if the usage flag is D3D11_USAGE_IMMUTABLE).
  • ID3D11Buffer **ppBuffer: Address of a pointer to the ID3D11Buffer interface for the buffer object created.

Next, we’ll create an index buffer using a similar method.

Index Buffer

Similar to the vertex buffer, we’ll use the ID3D11Device::CreateBuffer method to create and initialize the index buffer. The only difference between the vertex buffer and the index buffer is the bind flags of the index buffer will be D3D11_BIND_INDEX_BUFFER and the data that is used to initialize the buffer.

    // Create and initialize the index buffer.
    D3D11_BUFFER_DESC indexBufferDesc;
    ZeroMemory( &indexBufferDesc, sizeof(D3D11_BUFFER_DESC) );

    indexBufferDesc.BindFlags = D3D11_BIND_INDEX_BUFFER;
    indexBufferDesc.ByteWidth = sizeof(WORD) * _countof(g_Indicies);
    indexBufferDesc.CPUAccessFlags = 0;
    indexBufferDesc.Usage = D3D11_USAGE_DEFAULT;
    resourceData.pSysMem = g_Indicies;

    hr = g_d3dDevice->CreateBuffer( & indexBufferDesc, &resourceData, &g_d3dIndexBuffer );
    if ( FAILED(hr) )
    {
        return false;
    }

Now we need to define the three constant buffers that will be used to store the constant uniform variables used in the vertex shader.

Constant Buffers

Creating the constant buffers is very similar to creating the vertex and index buffers expect will will only initialize the size of the constant buffers but not the contents of the constant buffers. The contents of these constant buffers will be initialized later.

    // Create the constant buffers for the variables defined in the vertex shader.
    D3D11_BUFFER_DESC constantBufferDesc;
    ZeroMemory( &constantBufferDesc, sizeof(D3D11_BUFFER_DESC) );

    constantBufferDesc.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
    constantBufferDesc.ByteWidth = sizeof( XMMATRIX );
    constantBufferDesc.CPUAccessFlags = 0;
    constantBufferDesc.Usage = D3D11_USAGE_DEFAULT;

    hr = g_d3dDevice->CreateBuffer( &constantBufferDesc, nullptr, &g_d3dConstantBuffers[CB_Appliation] );
    if ( FAILED(hr) )
    {
        return false;
    }
    hr = g_d3dDevice->CreateBuffer( &constantBufferDesc, nullptr, &g_d3dConstantBuffers[CB_Frame] );
    if ( FAILED(hr) )
    {
        return false;
    }
    hr = g_d3dDevice->CreateBuffer( &constantBufferDesc, nullptr, &g_d3dConstantBuffers[CB_Object] );
    if ( FAILED(hr) )
    {
        return false;
    }

In this case, we specify D3D11_BIND_CONSTANT_BUFFER for the bind flags of the constant buffers and we use nullptr for the D3D11_SUBRESOURCE_DATA parameter to just allocate memory for the buffer but not initialize that memory.

Since we will need to update the contents of the constant buffer in the application, you may be tempted to set the buffer’s Usage property to D3D11_USAGE_DYNAMIC and the CPUAccessFlags to D3D11_CPU_ACCESS_WRITE. You must resist this temptation! Later we will update the contents of this buffer using the ID3D11DeviceContext::UpdateSubresource method and this method expects constant buffers to be initialized with D3D11_USAGE_DEFAULT usage flag and buffers that are created with the D3D11_USAGE_DEFAULT flag must have their CPUAccessFlags set to 0.

Each of these three constant buffers only contains a single 4×4 matrix but a constant buffer may contain any number of matrices, vectors, or scalars. The only requirement is that the constant buffer is created the same size as the constant buffer defined in the shader in which it is used.

Now let’s load some shaders.

Load Shaders

As mentioned in the Compiling Shaders section, there are several ways to load the shader at runtime.

  1. Load and compile the shader at runtime.
  2. Load a precompiled shader object.
  3. Create a shader from a byte array.

Load and Compile at Runtime

We can use the LoadShader template function described earlier to load and compile the HLSL shaders at runtime.

    // Load the shaders
    g_d3dVertexShader = LoadShader<ID3D11VertexShader>( L"../data/shaders/SimpleVertexShader.hlsl", "SimpleVertexShader", "latest" );
    g_d3dPixelShader = LoadShader<ID3D11PixelShader>( L"../data/shaders/SimplePixelShader.hlsl", "SimplePixelShader", "latest" );

Load a Precompiled Shader Object

If we want to load a precompiled shader object, we can use the D3DReadFileToBlob function to load the precompiled shader directly to a ID3DBlob interface.

    // Load the compiled vertex shader.
    ID3DBlob* vertexShaderBlob;
#if _DEBUG
    LPCWSTR compiledVertexShaderObject = L"SimpleVertexShader_d.cso";
#else
    LPCWSTR compiledVertexShaderObject = L"SimpleVertexShader.cso";
#endif

    hr = D3DReadFileToBlob( compiledVertexShaderObject, &vertexShaderBlob );
    if ( FAILED(hr) )
    {
        return false;
    }

    hr = g_d3dDevice->CreateVertexShader( vertexShaderBlob->GetBufferPointer(), vertexShaderBlob->GetBufferSize(), nullptr, &g_d3dVertexShader );
    if ( FAILED( hr ) )
    {
        return false;
    }

How to create the compiled shader object (.cso) was explained in the Precompiled Shaders section of this article.

Load from Byte Array

And the final method which is probably the easiest and most portable way to load a precompiled shader is to load the shader from a byte array. The FXC.exe compiler can write the definition of the byte array to a header file which can be included in the application and use the byte array to create the shader. Suppose we configured the shader compiler to output the byte array for the vertex shader into a global variable named g_SimpleVertexShader and the byte array for the pixel shader into a global variable named g_SimplePixelShader then we could load the shaders in this way:

    hr = g_d3dDevice->CreateVertexShader( g_SimpleVertexShader, sizeof(g_SimpleVertexShader), nullptr, &g_d3dVertexShader );
    if ( FAILED( hr ) )
    {
        return false;
    }

    hr = g_d3dDevice->CreatePixelShader( g_SimplePixelShader, sizeof(g_SimplePixelShader), nullptr, &g_d3dPixelShader );
    if ( FAILED( hr ) )
    {
        return false;
    }

Now that we have seen multiple methods for loading a shader, we need to define an ID3D11InputLayout interface object which maps the vertex buffer elements to the varying vertex attributes in the vertex shader.

Input Layout

The ID3D11InputLayout interface is used to define how the vertex data attached to the input-assembler stage is layed out in memory. An instance of the ID3D11InputLayout interface object is created using the ID3D11Device::CreateInputLayout method. This method has the following signature [48]:

HRESULT CreateInputLayout(
  [in]   const D3D11_INPUT_ELEMENT_DESC *pInputElementDescs,
  [in]   UINT NumElements,
  [in]   const void *pShaderBytecodeWithInputSignature,
  [in]   SIZE_T BytecodeLength,
  [out]  ID3D11InputLayout **ppInputLayout
);

Where:

  • const D3D11_INPUT_ELEMENT_DESC *pInputElementDescs: An array of the input-assembler stage input data types; each type is described by an element description (see D3D11_INPUT_ELEMENT_DESC). This structure will be described in the next section.
  • UINT NumElements: The number of input elements in the pInputElementDescs array.
  • const void *pShaderBytecodeWithInputSignature: A pointer to the compiled shader. The compiled shader code contains a input signature which is validated against the array of elements.
  • SIZE_T BytecodeLength: The size in bytes of the pShaderBytecodeWithInputSignature array.
  • ID3D11InputLayout **ppInputLayout: A pointer to the input-layout object created (see ID3D11InputLayout).

The input-layout is created from an array of D3D11_INPUT_ELEMENT_DESC structures. Each element in the array describes a single element of the vertex buffer that is bound to the input-assembler stage.

The D3D11_INPUT_ELEMENT_DESC structure has the following definition [49]:

typedef struct D3D11_INPUT_ELEMENT_DESC {
  LPCSTR                     SemanticName;
  UINT                       SemanticIndex;
  DXGI_FORMAT                Format;
  UINT                       InputSlot;
  UINT                       AlignedByteOffset;
  D3D11_INPUT_CLASSIFICATION InputSlotClass;
  UINT                       InstanceDataStepRate;
} D3D11_INPUT_ELEMENT_DESC;

Where:

  • LPCSTR SemanticName: The HLSL semantic associated with this element in a shader input-signature.
  • UINT SemanticIndex: The semantic index for the element. A semantic index modifies a semantic, with an integer index number. A semantic index is only needed in a case where there is more than one element with the same semantic.
  • DXGI_FORMAT Format: The data type of the element data. See DXGI_FORMAT. For example, if the element describes a 4-component floating point vector, the Format flag would be set to DXGI_FORMAT_R32G32B32A32_FLOAT.
  • UINT InputSlot: If using a single vertex buffer with interleaved vertex attributes then the input slot should always be 0. If using several packed vertex buffers where each vertex buffer contains the vertex data for a single vertex attribute, then the input slot is the index of the vertex buffer that is attached to the input assembler stage.
  • UINT AlignedByteOffset: Offset (in bytes) between each element. Use D3D11_APPEND_ALIGNED_ELEMENT for convenience to define the current element directly after the previous one, including any packing if necessary.
  • D3D11_INPUT_CLASSIFICATION InputSlotClass: Identifies the input data class for a single input slot. This member can have one of the following values [50]:
    • D3D11_INPUT_PER_VERTEX_DATA: Input data is per-vertex data.
    • D3D11_INPUT_PER_INSTANCE_DATA: Input data is per-instance data.
  • UINT InstanceDataStepRate: The number of instances to draw using the same per-instance data before advancing in the buffer by one element. This value must be 0 for an element that contains per-vertex data (the slot class is set to D3D11_INPUT_PER_VERTEX_DATA).

Armed with this information, we can define the D3D11_INPUT_ELEMENT_DESC array that defines the layout of our vertex data and create the ID3D11InputLayout object.

    // Create the input layout for the vertex shader.
    D3D11_INPUT_ELEMENT_DESC vertexLayoutDesc[] =
    {
        { "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, offsetof(VertexPosColor,Position), D3D11_INPUT_PER_VERTEX_DATA, 0 },
        { "COLOR", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, offsetof(VertexPosColor,Color), D3D11_INPUT_PER_VERTEX_DATA, 0 }
    };

    hr = g_d3dDevice->CreateInputLayout( vertexLayoutDesc, _countof(vertexLayoutDesc), vertexShaderBlob->GetBufferPointer(), vertexShaderBlob->GetBufferSize(), &g_d3dInputLayout );
    if ( FAILED(hr) )
    {
        return false;
    }

    SafeRelease( vertexShaderBlob );

The vertex buffer for our cube geometry contains two attributes; the vertex position and the vertex color. Both the vertex position and the vertex color are passed to the vertex shader as a 3-component 32-bit floating-point vector. Since both attributes are stored interleaved in a single vertex buffer (instead of storing each attribute packed in separate vertex buffers) they both use the first (0) input slot. Since both of these attributes describe per-vertex (as apposed to per-instance) attributes, they use the D3D11_INPUT_PER_VERTEX_DATA input classification.

On line 489, the input layout object is created using the layout description.

With the input layout object created, we no longer need the shader blob so on line 495, the shader blob is released.

Load Pixel Shader

The pixel shader is loaded in a similar way to the vertex shader but there is no need to define the input layout for the pixel shader. The pixel shader is loaded from a precompiled shader object.

    // Load the compiled pixel shader.
    ID3DBlob* pixelShaderBlob;
#if _DEBUG
    LPCWSTR compiledPixelShaderObject = L"SimplePixelShader_d.cso";
#else
    LPCWSTR compiledPixelShaderObject = L"SimplePixelShader.cso";
#endif

    hr = D3DReadFileToBlob( compiledPixelShaderObject, &pixelShaderBlob );
    if ( FAILED(hr) )
    {
        return false;
    }

    hr = g_d3dDevice->CreatePixelShader( pixelShaderBlob->GetBufferPointer(), pixelShaderBlob->GetBufferSize(), nullptr, &g_d3dPixelShader );
    if ( FAILED( hr ) )
    {
        return false;
    }

    SafeRelease( pixelShaderBlob );

This code snippet is very similar to the vertex shader loading so it will not be explained in detail.

Projection Matrix

One final thing we can do in the LoadContent method for this demo is setup the projection matrix and update the constant buffer that stores the value of the projection matrix in the shader.

    // Setup the projection matrix.
    RECT clientRect;
    GetClientRect( g_WindowHandle, &clientRect );

    // Compute the exact client dimensions.
    // This is required for a correct projection matrix.
    float clientWidth = static_cast<float>( clientRect.right - clientRect.left );
    float clientHeight = static_cast<float>( clientRect.bottom - clientRect.top );

    g_ProjectionMatrix = XMMatrixPerspectiveFovLH( XMConvertToRadians(45.0f), clientWidth/clientHeight, 0.1f, 100.0f );

    g_d3dDeviceContext->UpdateSubresource( g_d3dConstantBuffers[CB_Appliation], 0, nullptr, &g_ProjectionMatrix, 0, 0 );

    return true;
}

On line 528, the projection matrix is computed from the XMMatrixPerspectiveFovLH function and on line 530 the contents of the projection matrix are copied into the per-appliction constant buffer using the ID3D11DeviceContext::UpdateSubresource method.

The ID3D11DeviceContext::UpdateSubresource method has the following signature [51]:

void UpdateSubresource(
  [in]  ID3D11Resource *pDstResource,
  [in]  UINT DstSubresource,
  [in]  const D3D11_BOX *pDstBox,
  [in]  const void *pSrcData,
  [in]  UINT SrcRowPitch,
  [in]  UINT SrcDepthPitch
);

Where:

  • ID3D11Resource *pDstResource: A pointer to the destination resource (see ID3D11Resource).
  • UINT DstSubresource: A zero-based index, that identifies the destination subresource. See D3D11CalcSubresource for more details.
  • const D3D11_BOX *pDstBox: A pointer to a box that defines the portion of the destination subresource to copy the resource data into. Coordinates are in bytes for buffers and in texels for textures. If NULL, the data is written to the destination subresource with no offset. The dimensions of the source must fit the destination (see D3D11_BOX).
  • const void *pSrcData: A pointer to the source data in memory.
  • UINT SrcRowPitch: The size of one row of the source data.
  • UINT SrcDepthPitch: The size of one depth slice of source data.

For a shader-constant buffer; set pDstBox to NULL. It is not possible to use this method to partially update a shader-constant buffer [51].

Now that we have loaded the content that will be used by our demo, let’s implement the update and render functions so that we can see something interesting on the screen.

The Update Function

First we’ll implement the update function. This function doesn’t do much except setup the camera’s view matrix and create a rotation matrix for our cube.

void Update(  float deltaTime )
{
    XMVECTOR eyePosition = XMVectorSet( 0, 0, -10, 1 );
    XMVECTOR focusPoint = XMVectorSet( 0, 0, 0, 1 );
    XMVECTOR upDirection = XMVectorSet( 0, 1, 0, 0 );
    g_ViewMatrix = XMMatrixLookAtLH( eyePosition, focusPoint, upDirection );
    g_d3dDeviceContext->UpdateSubresource( g_d3dConstantBuffers[CB_Frame], 0, nullptr, &g_ViewMatrix, 0, 0 );


    static float angle = 0.0f;
    angle += 90.0f * deltaTime;
    XMVECTOR rotationAxis = XMVectorSet( 0, 1, 1, 0 );

    g_WorldMatrix = XMMatrixRotationAxis( rotationAxis, XMConvertToRadians(angle) );
    g_d3dDeviceContext->UpdateSubresource( g_d3dConstantBuffers[CB_Object], 0, nullptr, &g_WorldMatrix, 0, 0 );
}

On lines 807-810 we setup the view matrix by placing the camera 10 units back looking towards the origin.
On line 810, the constant buffer which is used to store the view matrix is updated using the same method used to update the projection matrix.

On line 814-818 we create a rotation matrix that is used to rotate the cube and on line 819 the constant buffer that stores the object’s world matrix is updated using the same method that was used to update the view matrix and the projection matrix.

Before we can render we will define two helper functions. The first will clear the render target, and the depth and stencil buffers and the second will be used to present the contents of the swap chain’s back buffer to the screen.

Clear

Before we can start rendering a new frame, we must clear the old contents of the back buffer and the depth/stencil buffers.

// Clear the color and depth buffers.
void Clear( const FLOAT clearColor[4], FLOAT clearDepth, UINT8 clearStencil )
{
    g_d3dDeviceContext->ClearRenderTargetView( g_d3dRenderTargetView, clearColor );
    g_d3dDeviceContext->ClearDepthStencilView( g_d3dDepthStencilView, D3D11_CLEAR_DEPTH|D3D11_CLEAR_STENCIL, clearDepth, clearStencil );
}

The ID3D11DeviceContext::ClearRenderTargetView method is used to clear the back buffer to a particlular color and the ID3D11DeviceContext::ClearDepthStencilView method is used to clear the depth and stencil buffer to a particular depth value and stencil value.

The back buffer of the swap chain and the depth/stencil buffer must be accessed using their views.

After everything has finished rendering, we must tell the swap chain to present the contents of the back buffer to the screen. For this we will create a Present helper function.

Present

The Present function is called at the end of the drawing code and finalizes the frame.

void Present( bool vSync )
{
    if ( vSync )
    {
        g_d3dSwapChain->Present( 1, 0 );
    }
    else
    {
        g_d3dSwapChain->Present( 0, 0 );
    }
}

The IDXGISwapChain::Present method is used to flip the back buffer to the front for display in the application window. The IDXGISwapChain::Present method takes two parameters [55]:

  • UINT SyncInterval: An integer that specifies how to synchronize presentation of a frame with the vertical blank. For the bit-block transfer (bitblt) model (DXGI_SWAP_EFFECT_DISCARD or DXGI_SWAP_EFFECT_SEQUENTIAL), values are:
    • 0: The presentation occurs immediately, there is no synchronization.
    • 1,2,3,4: Synchronize presentation after the nth vertical blank.

    For the flip model (DXGI_SWAP_EFFECT_FLIP_SEQUENTIAL), values are:

    • 0: Cancel the remaining time on the previously presented frame and discard this frame if a newer frame is queued.
    • n > 0: Synchronize presentation for at least n vertical blanks.
  • UINT Flags: An integer value that contains swap-chain presentation options. These options are defined by the DXGI_PRESENT constants.

If vertical-sync is enabled, then the presentation of the back buffer will wait until the next vertical blank for the screen. If the vertical sync is not enabled, then the contents of the back buffer will be displayed immediately without synchronization.

And finally everything is in place for rendering the geometry to the screen.

Render

In the render function, we’ll first clear the back buffer and the depth/stencil buffers. Then we’ll initialize each stage of the rendering pipeline and finally we’ll draw the geometry.

Clear the Screen

The first step of our render function (after checking our preconditions) is to clear the screen.

void Render()
{
    assert( g_d3dDevice );
    assert( g_d3dDeviceContext );

    Clear( Colors::CornflowerBlue, 1.0f, 0 );

On line 846, we call the Clear function to clear the contents of the back buffer and depth/stencil buffer.

Setup the Input Assembler Stage

The first stage of the rendering pipeline is the input assembler (IA).

    const UINT vertexStride = sizeof(VertexPosColor);
    const UINT offset = 0;

    g_d3dDeviceContext->IASetVertexBuffers( 0, 1, &g_d3dVertexBuffer, &vertexStride, &offset );
    g_d3dDeviceContext->IASetInputLayout( g_d3dInputLayout );
    g_d3dDeviceContext->IASetIndexBuffer( g_d3dIndexBuffer, DXGI_FORMAT_R16_UINT, 0 );
    g_d3dDeviceContext->IASetPrimitiveTopology( D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST );

On line 851-854 we setup the various properties of the input assembler stage. On line 851, we bind the vertex buffer to to input assembler stage using the ID3D11DeviceContext::IASetVertexBuffers method. This method takes the following arguments [56]:

  • UINT StartSlot: The first input slot for binding. The first vertex buffer is explicitly bound to the start slot; this causes each additional vertex buffer in the array to be implicitly bound to each subsequent input slot. The maximum of 16 or 32 input slots (ranges from 0 to D3D11_IA_VERTEX_INPUT_RESOURCE_SLOT_COUNT – 1) are available; the maximum number of input slots depends on the feature level.
  • UINT NumBuffers: The number of vertex buffers in the array. The number of buffers (plus the starting slot) can’t exceed the total number of IA-stage input slots (ranges from 0 to D3D11_IA_VERTEX_INPUT_RESOURCE_SLOT_COUNTStartSlot).
  • ID3D11Buffer *const *ppVertexBuffers: A pointer to an array of vertex buffers (see ID3D11Buffer). The vertex buffers must have been created with the D3D11_BIND_VERTEX_BUFFER flag.
  • const UINT *pStrides: Pointer to an array of stride values; one stride value for each buffer in the vertex-buffer array. Each stride is the size (in bytes) of the elements that are to be used from that vertex buffer.
  • const UINT *pOffsets: Pointer to an array of offset values; one offset value for each buffer in the vertex-buffer array. Each offset is the number of bytes between the first element of a vertex buffer and the first element that will be used.

Since we only have a single vertex buffer, the StartSlot is always 0 and the NumBuffers is 1. The StartSlot argument should match the InputSlot of the D3D11_INPUT_ELEMENT_DESC elements that were configured in the LoadContent function.

On line 852 the input layout is specified for the input assembler stage using the ID3D11DeviceContext::IASetInputLayout method. The input layout object used must match the input signature of the vertex shader which is bound to the vertex shader stage while rendering.

On line 853 the index buffer is bound to the input assembler stage using the ID3D11DeviceContext::IASetIndexBuffer method. This method takes the following arguments [57]:

  • ID3D11Buffer *pIndexBuffer: A pointer to an ID3D11Buffer object, that contains indices. The index buffer must have been created with the D3D11_BIND_INDEX_BUFFER flag.
  • DXGI_FORMAT Format: A DXGI_FORMAT that specifies the format of the data in the index buffer. The only formats allowed for index buffer data are 16-bit (DXGI_FORMAT_R16_UINT) and 32-bit (DXGI_FORMAT_R32_UINT) integers.
  • UINT Offset: Offset (in bytes) from the start of the index buffer to the first index to use.

And on line 854 the type of primitive that will be used for rendering is specified using the ID3D11DeviceContext::IASetPrimitiveTopology method. In this case we specify the D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST primitive type which indicates to the input assembler stage that we are rending with a list of discontinuous triangles.

Setup the Vertex Shader Stage

The next stage of the rendering pipeline is the vertex shader stage (VS). For the vertex shader stage we only have to specify the vertex shader which will be used to transform the object space vertices to homogeneous clip space and bind any constant buffers that are used by the vertex shader stage.

    g_d3dDeviceContext->VSSetShader( g_d3dVertexShader, nullptr, 0 );
    g_d3dDeviceContext->VSSetConstantBuffers(0, 3, g_d3dConstantBuffers );

The vertex shader is bound to the vertex shader stage using the ID3D11DeviceContext::VSSetShader method. This method takes the following arguments [58]:

  • ID3D11VertexShader *pVertexShader: Pointer to a vertex shader (see ID3D11VertexShader). Passing in NULL disables the shader for this pipeline stage.
  • ID3D11ClassInstance *const *ppClassInstances: A pointer to an array of class-instance interfaces (see ID3D11ClassInstance). Each interface used by a shader must have a corresponding class instance or the shader will get disabled. Set ppClassInstances to NULL if the shader does not use any interfaces.
  • UINT NumClassInstances: The number of class-instance interfaces in the ppClassInstances array.

On line 857 the constant buffers used by the vertex shader are bound to the vertex shader stage using the ID3D11DeviceContext::VSSetConstantBuffers method. This method takes the following arguments:

  • UINT StartSlot: Index into the device’s zero-based array to begin setting constant buffers to (ranges from 0 to D3D11_COMMONSHADER_CONSTANT_BUFFER_API_SLOT_COUNT – 1).
  • UINT NumBuffers: Number of buffers to set (ranges from 0 to D3D11_COMMONSHADER_CONSTANT_BUFFER_API_SLOT_COUNT – StartSlot).
  • ID3D11Buffer *const *ppConstantBuffers: Array of constant buffers (see ID3D11Buffer) being given to the device.

Setup the Rasterizer Stage

After the vertex shader stage but before the pixel shader stage comes the rasterizer stage. The rasterizer stage is responsible for interpolating the various vertex attributes output from the vertex shader and invoking the pixel shader program for each screen pixel which is affected by the rendered geometry.

    g_d3dDeviceContext->RSSetState( g_d3dRasterizerState );
    g_d3dDeviceContext->RSSetViewports( 1, &g_Viewport );

On line 859 the rasterizer stage is initialized using the ID3D11DeviceContext::RSSetState method. This method takes a pointer to a ID3D11RasterizerState object which we created in the InitDirectX function.

The rasterizer stage also needs to know about any viewports that are used to map the clip space coordinates into screen space. All viewports are bound to the rasterizer stage using the ID3D11DeviceContext::RSSetViewports method. This takes the following arguments [59]:

  • UINT NumViewports: Number of viewports to bind.
  • const D3D11_VIEWPORT *pViewports: An array of D3D11_VIEWPORT structures to bind to the device.

All viewports must be set atomically as one operation. Any viewports not defined by the call are disabled.
Which viewport to use is determined by the SV_ViewportArrayIndex semantic output by a geometry shader; if a geometry shader does not specify the semantic, Direct3D will use the first viewport in the array [59].

Setup the Pixel Shader Stage

Next we’ll setup the pixel shader stage. For this stage, we only have to bind the pixel shader program to the pixel shader stage.

    g_d3dDeviceContext->PSSetShader( g_d3dPixelShader, nullptr, 0 );

The pixel shader is bound to the pixel shader stage using the ID3D11DeviceContext::PSSetShader method. This method is similar to the method to set the vertex shader so I won’t detail the arguments here.

Setup the Output Merger Stage

The output merger stage (as it’s name suggests) merges the output from the pixel shader onto the color and depth buffers.

    g_d3dDeviceContext->OMSetRenderTargets( 1, &g_d3dRenderTargetView, g_d3dDepthStencilView );
    g_d3dDeviceContext->OMSetDepthStencilState( g_d3dDepthStencilState, 1 );

The back buffer and depth/stencil buffer are bound to the output merger stage using the ID3D11DeviceContext::OMSetRenderTargets method. This method takes the following arguments [60]:

  • UINT NumViews: Number of render targets to bind (ranges between 0 and D3D11_SIMULTANEOUS_RENDER_TARGET_COUNT). If this parameter is nonzero, the number of entries in the array to which ppRenderTargetViews points must equal the number in this parameter.
  • ID3D11RenderTargetView *const *ppRenderTargetViews: Pointer to an array of ID3D11RenderTargetView that represent the render targets to bind to the device. If this parameter is NULL and NumViews is 0, no render targets are bound.
  • ID3D11DepthStencilView *pDepthStencilView: Pointer to a ID3D11DepthStencilView that represents the depth-stencil view to bind to the device. If this parameter is NULL, the depth-stencil view is not bound.

You can render to multiple render targets by mapping multiple output values to the SV_Target[n] (where n is between 0 and D3D11_SIMULTANEOUS_RENDER_TARGET_COUNT) semantic in the pixel shader. Currently, the maximum number of render target views that can be mapped to the output merger stage is eight (8).

On line 865, the ID3D11DeviceContext::OMSetDepthStencilState method is used to map the ID3D11DepthStencilState object that was created in the InitDirectX function. Setting the first argument of this method to NULL will use the default state listed in D3D11_DEPTH_STENCIL_DESC [61].

Draw the Cube

Now that we have initialized the various stages of the rendering pipeline, we can render the cube geometry to the screen.

    g_d3dDeviceContext->DrawIndexed( _countof(g_Indicies), 0, 0 );

The ID3D11DeviceContext::DrawIndexed method is used to draw indexed primitives without instancing. The ID3D11DeviceContext::DrawIndexed method takes the following arguments [62]:

  • UINT IndexCount: Number of indices in the currently bound index buffer to draw.
  • UINT StartIndexLocation: The location of the first index read by the GPU from the index buffer.
  • INT BaseVertexLocation: A value added to each index before reading a vertex from the vertex buffer.

Present

The final step in the render function is to present the swap chain’s back buffer to the screen.

    Present( g_EnableVSync );
}

Cleanup

Because we are such tidy programmers, we should not forget to tidy up the resource before our application quits.

UnloadContent

The UnloadContent function is used for releasing the resources that were allocated in the LoadContent method.

void UnloadContent()
{
    SafeRelease(g_d3dConstantBuffers[CB_Appliation]);
    SafeRelease(g_d3dConstantBuffers[CB_Frame]);
    SafeRelease(g_d3dConstantBuffers[CB_Object]);
    SafeRelease(g_d3dIndexBuffer);
    SafeRelease(g_d3dVertexBuffer);
    SafeRelease(g_d3dInputLayout);
    SafeRelease(g_d3dVertexShader);
    SafeRelease(g_d3dPixelShader);
}

Since all of the resources we allocated are all COM objects, we can use the SafeRelease method to release the reference count of the COM objects. If the COM object’s reference count reaches 0, it will be automatically deleted by the system.

Cleanup

We should also not forget to cleanup the references to the resources allocated in the InitDirectX function.

void Cleanup()
{
    SafeRelease( g_d3dDepthStencilView );
    SafeRelease( g_d3dRenderTargetView );
    SafeRelease( g_d3dDepthStencilBuffer );
    SafeRelease( g_d3dDepthStencilState );
    SafeRelease( g_d3dRasterizerState );
    SafeRelease( g_d3dSwapChain );
    SafeRelease( g_d3dDeviceContext );
    SafeRelease( g_d3dDevice );
}

Now that we have defined all of the necessary functions let’s complete the main function.

Update the Run Function

At this point we should update the Run to call the Update and Render functions.

/**
 * The main application loop.
 */
int Run()
{
    MSG msg = {0};

    static DWORD previousTime = timeGetTime();
    static const float targetFramerate = 30.0f;
    static const float maxTimeStep = 1.0f / targetFramerate;

    while ( msg.message != WM_QUIT )
    {
        if ( PeekMessage( &msg, 0, 0, 0, PM_REMOVE ) )
        {
            TranslateMessage( &msg );
            DispatchMessage( &msg );
        }
        else
        {
            DWORD currentTime = timeGetTime();
            float deltaTime = ( currentTime - previousTime ) / 1000.0f;
            previousTime = currentTime;

            // Cap the delta time to the max time step (useful if your
            // debugging and you don't want the deltaTime value to explode.
            deltaTime = std::min<float>(deltaTime, maxTimeStep);

            Update( deltaTime );
            Render();
        }
    }

    return static_cast<int>(msg.wParam);
}

This function is identical to the Run function shown in the section titled The Run Method except now we can compile the application with the Update and Render functions uncommented.

Update the Main Function

And the final version of the main function which also loads the demo content and performs cleanup after the main window is closed.

int WINAPI wWinMain( HINSTANCE hInstance, HINSTANCE prevInstance, LPWSTR cmdLine, int cmdShow )
{
    UNREFERENCED_PARAMETER( prevInstance );
    UNREFERENCED_PARAMETER( cmdLine );

    // Check for DirectX Math library support.
    if ( !XMVerifyCPUSupport() )
    {
        MessageBox( nullptr, TEXT("Failed to verify DirectX Math library support."), TEXT("Error"), MB_OK );
        return -1;
    }

    if( InitApplication(hInstance, cmdShow) != 0 )
    {
        MessageBox( nullptr, TEXT("Failed to create applicaiton window."), TEXT("Error"), MB_OK );
        return -1;
    }

    if ( InitDirectX(hInstance, g_EnableVSync) != 0 )
    {
        MessageBox( nullptr, TEXT("Failed to create DirectX device and swap chain."), TEXT("Error"), MB_OK );
        return -1;
    }

    if ( !LoadContent() )
    {
        MessageBox( nullptr, TEXT("Failed to load content."), TEXT("Error"), MB_OK );
        return -1;
    }

    int returnCode = Run();

    UnloadContent();
    Cleanup();

    return returnCode;
}

Run the Demo

Now if we run the application again, we should see a rotating cube on a cornflower-blue background.

Download the Demo

You can download the source code including the project files for this demo here:

DirectX11_Template.zip

References

[1] Wikipedia. (2014). Directx. [online] Retrieved from: http://en.wikipedia.org/wiki/DirectX [Accessed: 10 Mar 2014].

[2] Wikipedia. (2014). Direct3d. [online] Retrieved from: http://en.wikipedia.org/wiki/Direct3D [Accessed: 10 Mar 2014].

[3] Wikipedia. (2014). Windows 95. [online] Retrieved from: http://en.wikipedia.org/wiki/Windows_95 [Accessed: 10 Mar 2014].

[4] Msdn.microsoft.com. (2014). Shader models vs shader profiles (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb509626(v=vs.85).aspx [Accessed: 11 Mar 2014].

[5] IGN. (2014). Gdc: microsoft to debut DirectX 12 on march 20 – ign. [online] Retrieved from: http://www.ign.com/articles/2014/03/06/gdc-microsoft-to-debut-directx-12 [Accessed: 11 Mar 2014].

[6] Msdn.microsoft.com. (2014). Direct2D (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/dd370990(v=vs.85).aspx [Accessed: 11 Mar 2014].

[7] Msdn.microsoft.com. (2014). Direct3D (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/hh309466(v=vs.85).aspx [Accessed: 11 Mar 2014].

[8] Msdn.microsoft.com. (2014). DirectWrite (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/dd368038(v=vs.85).aspx [Accessed: 11 Mar 2014].

[9] Msdn.microsoft.com. (2014). DirectXMath (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/hh437833(v=vs.85).aspx [Accessed: 11 Mar 2014].

[10] Msdn.microsoft.com. (2014). Xaudio2 APIs (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/hh405049(v=vs.85).aspx [Accessed: 11 Mar 2014].

[11] Msdn.microsoft.com. (2014). XInput game controller APIs (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/hh405053(v=vs.85).aspx [Accessed: 11 Mar 2014].

[12] Msdn.microsoft.com. (2014). DXGI overview (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb205075(v=vs.85).aspx [Accessed: 11 Mar 2014].

[13] Msdn.microsoft.com. (2014). Graphics pipeline (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476882(v=vs.85).aspx [Accessed: 11 Mar 2014].

[14] Msdn.microsoft.com. (2014). Tessellation overview (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476340(v=vs.85).aspx [Accessed: 11 Mar 2014].

[15] Msdn.microsoft.com. (2014). Shader stages (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb205146(v=vs.85).aspx#Pixel_Shader_Stage [Accessed: 11 Mar 2014].

[16] Msdn.microsoft.com. (2014). Wndclassex structure (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ms633577(v=vs.85).aspx [Accessed: 14 Mar 2014].

[17] Msdn.microsoft.com. (2014). Annotating function parameters and return values. [online] Retrieved from: http://msdn.microsoft.com/en-us/library/hh916382.aspx [Accessed: 14 Mar 2014].

[18] Msdn.microsoft.com. (2014). Createwindow function (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ms632679(v=vs.85).aspx [Accessed: 14 Mar 2014].

[19] Msdn.microsoft.com. (2014). Dxgi_swap_chain_desc structure (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb173075(v=vs.85).aspx [Accessed: 14 Mar 2014].

[20] Msdn.microsoft.com. (2014). Dxgi_format enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb173059(v=vs.85).aspx [Accessed: 14 Mar 2014].

[21] Msdn.microsoft.com. (2014). Dxgi_mode_scanline_order enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb173067(v=vs.85).aspx [Accessed: 14 Mar 2014].

[22] Msdn.microsoft.com. (2014). Dxgi_mode_scaling enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb173066(v=vs.85).aspx [Accessed: 14 Mar 2014].

[23] Msdn.microsoft.com. (2014). Dxgi_sample_desc structure (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb173072(v=vs.85).aspx [Accessed: 14 Mar 2014].

[24] Msdn.microsoft.com. (2014). Dxgi_usage (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb173078(v=vs.85).aspx [Accessed: 14 Mar 2014].

[25] Msdn.microsoft.com. (2014). Dxgi_swap_effect enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb173077(v=vs.85).aspx [Accessed: 14 Mar 2014].

[26] Msdn.microsoft.com. (2014). D3d11_create_device_flag enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476107(v=vs.85).aspx [Accessed: 17 Mar 2014].

[27] Msdn.microsoft.com. (2014). D3d11createdeviceandswapchain function (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476083(v=vs.85).aspx [Accessed: 17 Mar 2014].

[28] Msdn.microsoft.com. (2014). D3d_driver_type enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476328(v=vs.85).aspx [Accessed: 17 Mar 2014].

[29] Msdn.microsoft.com. (2014). Id3d11device::createrendertargetview method (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476517(v=vs.85).aspx [Accessed: 17 Mar 2014].

[30] Msdn.microsoft.com. (2014). D3d11_texture2d_desc structure (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476253(v=vs.85).aspx [Accessed: 17 Mar 2014].

[31] Msdn.microsoft.com. (2014). D3d11_usage enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476259(v=vs.85).aspx [Accessed: 17 Mar 2014].

[32] Msdn.microsoft.com. (2014). Id3d11device::createtexture2d method (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476521(v=vs.85).aspx [Accessed: 17 Mar 2014].

[33] Msdn.microsoft.com. (2014). Id3d11device::createdepthstencilview method (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476507(v=vs.85).aspx [Accessed: 17 Mar 2014].

[34] Msdn.microsoft.com. (2014). D3d11_depth_stencil_desc structure (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476110(v=vs.85).aspx [Accessed: 17 Mar 2014].

[35] Msdn.microsoft.com. (2014). D3d11_depth_write_mask enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476113(v=vs.85).aspx [Accessed: 17 Mar 2014].

[36] Msdn.microsoft.com. (2014). Id3d11device::createdepthstencilstate method (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476506(v=vs.85).aspx [Accessed: 17 Mar 2014].

[37] Msdn.microsoft.com. (2014). D3d11_rasterizer_desc structure (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476198(v=vs.85).aspx [Accessed: 17 Mar 2014].

[38] Msdn.microsoft.com. (2014). D3d11_fill_mode enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476131(v=vs.85).aspx [Accessed: 17 Mar 2014].

[39] Msdn.microsoft.com. (2014). D3d11_cull_mode enumeration (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476108(v=vs.85).aspx [Accessed: 17 Mar 2014].

[40] Msdn.microsoft.com. (2014). Id3d11device::createrasterizerstate method (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476516(v=vs.85).aspx [Accessed: 17 Mar 2014].

[41] Msdn.microsoft.com. (2014). D3d11_viewport structure (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476260(v=vs.85).aspx [Accessed: 17 Mar 2014].

[42] Msdn.microsoft.com. (2014). Semantics (windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb509647(v=vs.85).aspx#System_Value [Accessed: 18 Mar 2014].

[43] Msdn.microsoft.com. (2014). Direct3D feature levels (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476876(v=vs.85).aspx [Accessed: 18 Mar 2014].

[44] Msdn.microsoft.com. (2014). D3DCompileFromFile function (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/hh446872(v=vs.85).aspx [Accessed: 19 Mar 2014].

[45] Msdn.microsoft.com. (2014). D3D11_BUFFER_DESC structure (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476092(v=vs.85).aspx [Accessed: 19 Mar 2014].

[46] Msdn.microsoft.com. (2014). D3D11_SUBRESOURCE_DATA structure (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476220(v=vs.85).aspx [Accessed: 19 Mar 2014].

[47] Msdn.microsoft.com. (2014). ID3D11Device::CreateBuffer method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476501(v=vs.85).aspx [Accessed: 19 Mar 2014].

[48] Msdn.microsoft.com. (2014). ID3D11Device::CreateInputLayout method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476512(v=vs.85).aspx [Accessed: 19 Mar 2014].

[49] Msdn.microsoft.com. (2014). D3D11_INPUT_ELEMENT_DESC structure (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476180(v=vs.85).aspx [Accessed: 19 Mar 2014].

[50] Msdn.microsoft.com. (2014). D3D11_INPUT_CLASSIFICATION enumeration (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476179(v=vs.85).aspx [Accessed: 19 Mar 2014].

[51] Msdn.microsoft.com. (2014). ID3D11DeviceContext::UpdateSubresource method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476486(v=vs.85).aspx [Accessed: 20 Mar 2014].

[52] Msdn.microsoft.com. (2014). WindowProc callback function (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ms633573(v=vs.85).aspx [Accessed: 20 Mar 2014].

[53] Msdn.microsoft.com. (2014). TranslateMessage function (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ms644955(v=vs.85).aspx [Accessed: 20 Mar 2014].

[54] Msdn.microsoft.com. (2014). DispatchMessage function (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ms644934(v=vs.85).aspx [Accessed: 20 Mar 2014].

[55] Msdn.microsoft.com. (2014). IDXGISwapChain::Present method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/bb174576(v=vs.85).aspx [Accessed: 21 Mar 2014].

[56] Msdn.microsoft.com. (2014). ID3D11DeviceContext::IASetVertexBuffers method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476456(v=vs.85).aspx [Accessed: 21 Mar 2014].

[57] Msdn.microsoft.com. (2014). ID3D11DeviceContext::IASetIndexBuffer method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476453(v=vs.85).aspx [Accessed: 21 Mar 2014].

[58] Msdn.microsoft.com. (2014). ID3D11DeviceContext::VSSetShader method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476493(v=vs.85).aspx [Accessed: 21 Mar 2014].

[59] Msdn.microsoft.com. (2014). ID3D11DeviceContext::RSSetViewports method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476480(v=vs.85).aspx [Accessed: 21 Mar 2014].

[60] Msdn.microsoft.com. (2014). ID3D11DeviceContext::OMSetRenderTargets method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476464(v=vs.85).aspx [Accessed: 21 Mar 2014].

[61] Msdn.microsoft.com. (2014). ID3D11DeviceContext::OMSetDepthStencilState method (Windows). [online] Retrieved from: http://msdn.microsoft.com/en-us/library/windows/desktop/ff476463(v=vs.85).aspx [Accessed: 21 Mar 2014].

http://msdn.microsoft.com/en-us/library/windows/desktop/ff476409(v=vs.85).aspx [Accessed: 21 Mar 2014].

[63] Sherrod, A. & Jones, W. (2012). Beginning directx 11 game programming. Boston, MA: Course Technology.

20 thoughts on “Introduction to DirectX 11

  1. This is just great. Thank you so much. Using C# and various frameworks (XNA, libGDX), also Unity engine. I decided to take a look at Direct3D API. If you have some tips to share on terrain rendering please add it to your todo (if your time allows).

    But this intro only is worth a lot. Thank you once again.

  2. Awesome tutorial! Been looking all over the web for something like this – its fantastic! Thanks for taking the time to write it and document out all the details, its very easy to follow and very well written! This is what every C++ game programming book *should* start with! Kudos!!

  3. Thanks for this awesome tutorial!

    Thought you’d like to know, I’m a University student and we’re in the process of moving from Dx9 to Dx11 and we’ve all been pointer here to get started.

    Again, many thanks for such an in-depth tutorial on the subject. 🙂

  4. If you follow this tutorial and are a beginer like me, you may hane some issues, here’s the ones I got. Include , and go to (VS) Tools->Options->Debugging->Symbols, then check “Microsoft Symbol Servers”. You may also have some issues with precompiling headers, for the sake of following the tutorial completely I disabled it. Great tutorial ! Thanks a lot !

    • Nick,

      Yes, the <algorithm> header was not required when I initially wrote this article using Visual Studio 2012 (I suppose it was included by another header with VS2012). When switching to Visual Studio 2013, the <algorithm> header needed to be explicitly included for the std::min and std::max functions.

  5. I am still learning but I live this tutorial. Instead of using VS2012 I use VS2013 Community.
    In order for me to get the code working I needed to include the library “#include <algorithm>”. Without I was not able to use ‘std::min’

  6. Hi, thanks for a great tutorial!

    Have you got any example at loading a shader directly from .hlsl source ?

    I am stuck with using the LoadShader function because then the CreateInputLayout function requires a shader blob. How do I get it ??

    Additionnaly is there a way to compile a shader from a string input like OpenGL does ?

    Thanks.

    • Julien,

      The example to compile a shader from a file at runtime is explained here:
      http://www.3dgep.com/introduction-to-directx-11/#Runtime_Compiled_Shader
      http://www.3dgep.com/introduction-to-directx-11/#Load_and_Compile_at_Runtime

      And to build the input layout from the shader blob:

      http://www.3dgep.com/introduction-to-directx-11/#Input_Layout

      To load a shader from a string you use the D3DCompile function:

      https://msdn.microsoft.com/en-us/library/dd607324(v=vs.85).aspx

      • What I don’t understand is : at the point of calling the g_d3dDevice->CreateInputLayout function, we don’t have a shader blob available (if using the LoadShader func.) because the shader blob is created inside the LoadShader func. and gone at the time a call is made to g_d3dDevice->CreateInputLayout.

        I can’t just do this right : hr = g_d3dDevice->CreateInputLayout(vertexLayoutDesc, _countof(vertexLayoutDesc), &g_d3dVertexShader, sizeof(g_d3dVertexShader), &g_d3dInputLayout); ???

        • Julien,

          In this tutorial I simply wanted to show you how you could load and compile a shader at runtime. If you look at the LoadContent function, you will see that I’m not actually using LoadShader function (it’s commented out). You are correct about the CreateInputLayout function. It needs the shader blob (not the Shader object that you get back from ID3D11Device::CreateVertexShader).

          The problem is that the LoadShader function would need to know about the layout of the input attributes but it can’t know that without reflecting the shader object. This is possible, but I didn’t do that in this tutorial because I wanted to keep it simple.

          For a detailed method to generate the input layout automatically using shader reflection, see this clip I made on pastebin:

          http://pastebin.com/YvW9Zhs3

          Keep in mind, there are some drawbacks to using this method to automatically build the input layout. The biggest drawback being that the reflection library can’t tell if something is a per-vertex attribute or a per-instance attribute.

          Another drawback is that the reflection library can’t know your buffer layout. I just send each attribute in a separate buffer so each buffer will have a unique input slot.

          I hope this helps.

Leave a Reply

Your email address will not be published. Required fields are marked *
